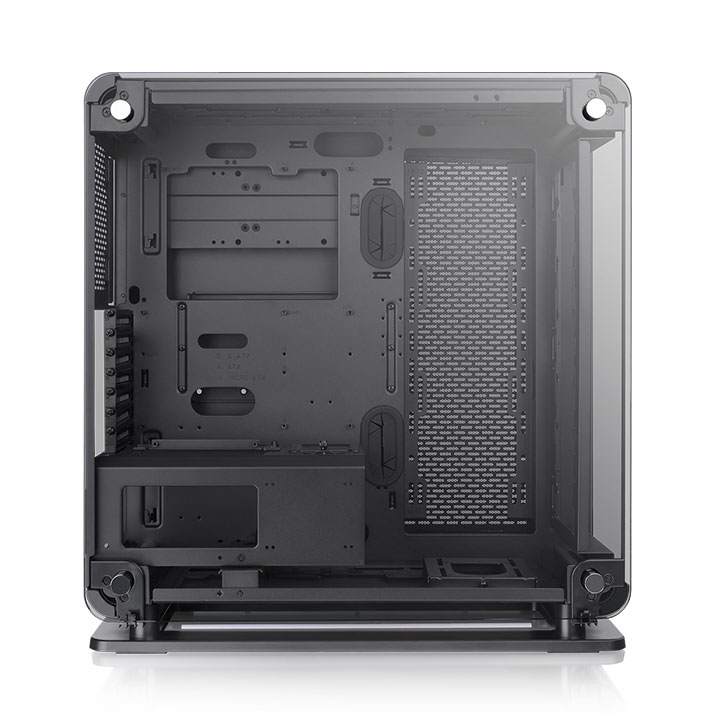

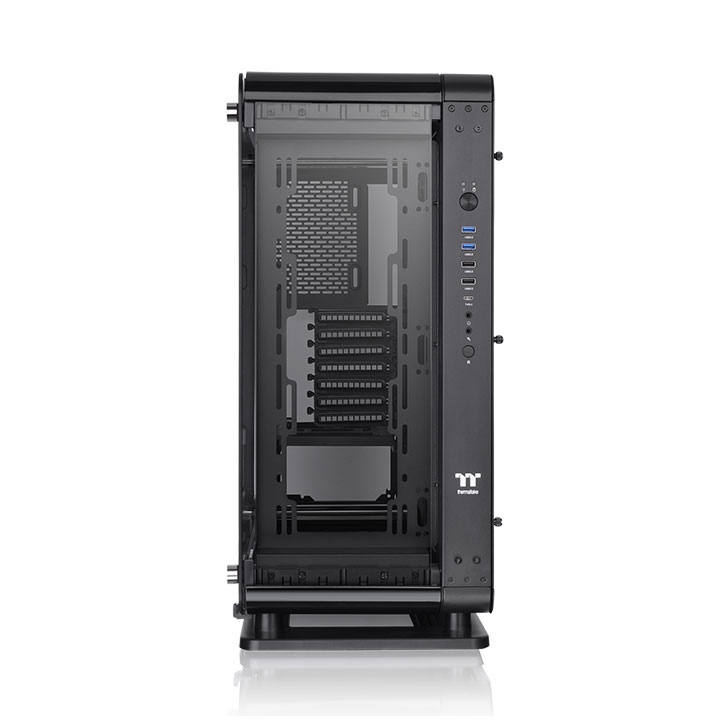

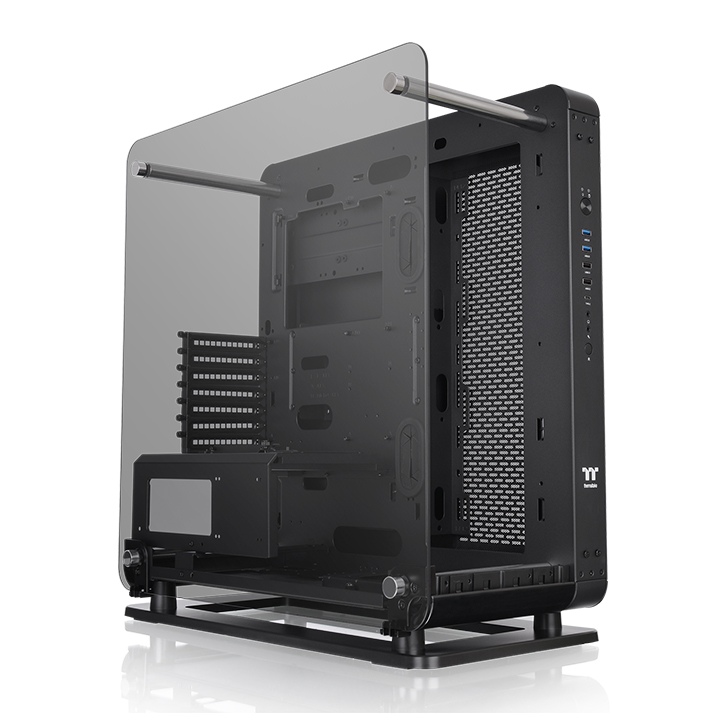

Thermaltake Core P6 TG ATX Mid Tower Cabinet Black

Description

P/N	CA-1V2-00M1WN-00
SERIES	Core
CASE TYPE	Mid Tower
DIMENSION (H X W X D)	1. 565 x 255 x 530mm 2. (22.2 x 10 x 20.9 inch)
NET WEIGHT	17.84 kg / 39.33 lbs.
PANEL	4mm Tempered Glass x 3
COLOR	Black
MATERIAL	SPCC
DRIVE BAYS -ACCESSIBLE -HIDDEN	4 x 3.5” or 8 x 2.5”
EXPANSION SLOTS	7 (Rotatable Patented Design)
MOTHERBOARDS	1. 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 2. 12” x 9.6” (ATX), 12” x 10.5”(CEB)
I/O PORT	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
FAN SUPPORT	1. Front: i. 3 x 120mm, 2 x 120mm, 1 x 120mm ii. 2 x 140mm, 1 x 140mm 2. Top: i. 3 x 120mm, 2 x 120mm, 1 x 120mm ii. 2 x 140mm, 1 x 140mm 3. Rear: i. 1 x 120mm 4. Right (M/B Side): i. 3 x 120mm, 2 x 120mm, 1 x 120mm ii. 2 x 140mm, 1 x 140mm 4. Bottom: i. 3 x 120mm, 2 x 120mm or 1 x 120mm ii. 2 x 140mm, 1 x 140mm
RADIATOR SUPPORT	1. Front: i. 1 x 360mm, 1 x 240mm, 1 x 120mm ii. 1 x 280mm, 1 x 140mm 2. Top: i. 1 x 360mm, 1 x 240mm, 1 x 120mm ii. 1 x 280mm, 1 x 140mm 3. Rear: i. 1 x 120mm 4. Right (M/B Side): i. 1 x 360mm, 1 x 240mm, 1 x 120mm ii. 1 x 280mm, 1 x 140mm 5. Bottom: i. 1 x 240mm, 1 x 120mm
CLEARANCE	1. CPU cooler height limitation: 2. 180mm 3. VGA length limitation: 4. 300mm (With Reservoir) 5. 400mm (Without Reservoir) 6. 430mm (With Radiator) 7. 458mm (Without Radiator) 8. PSU length limitation: 9. 200mm
