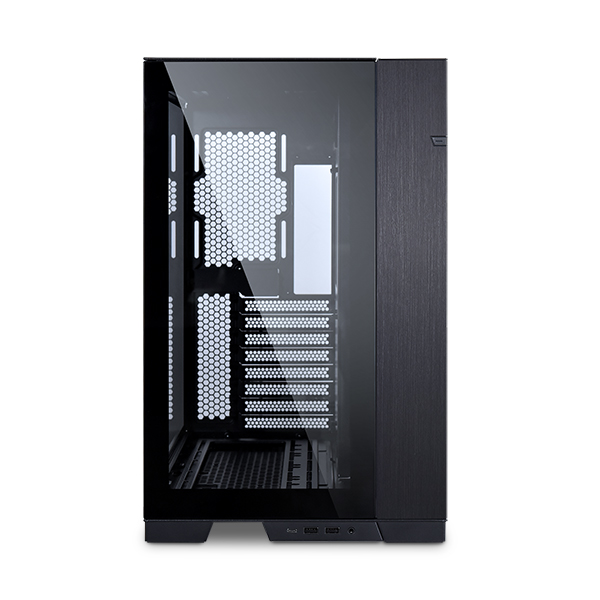

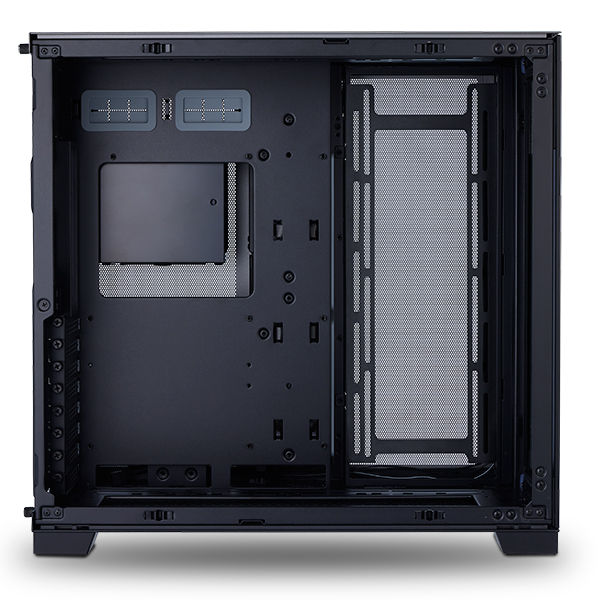

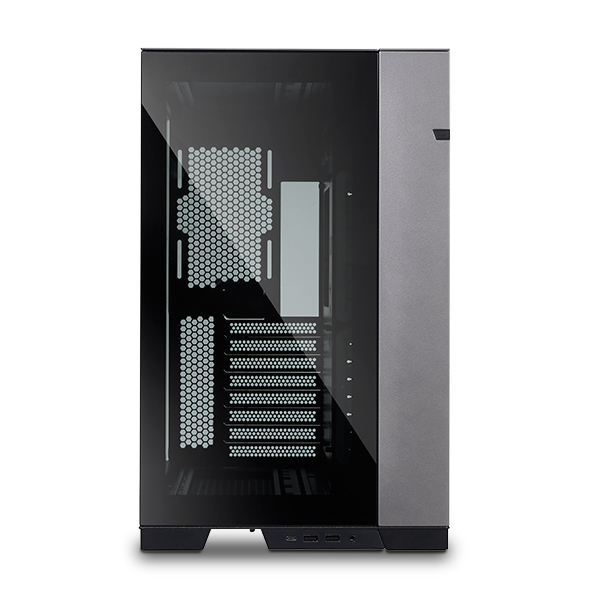

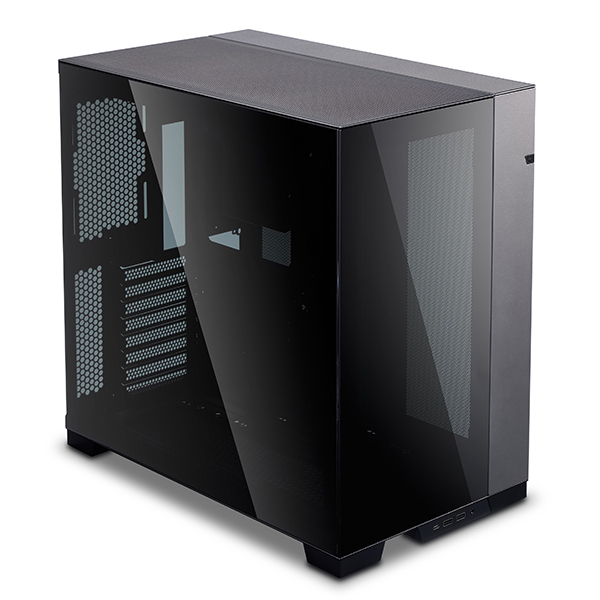

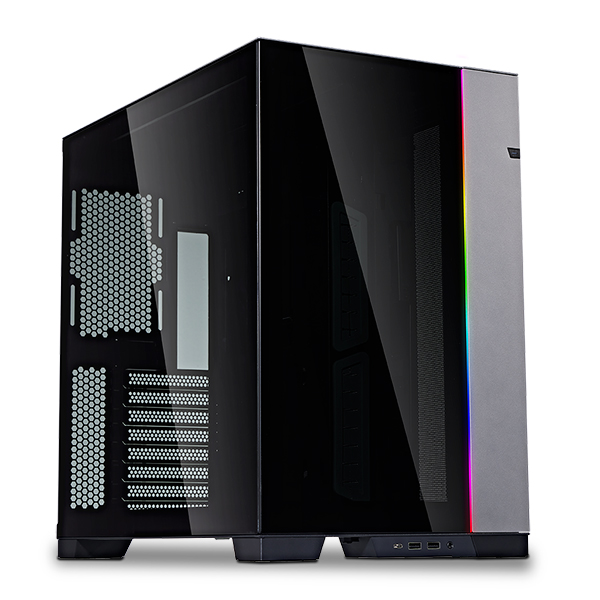

Lian Li O11 Dynamic EVO ARGB E-ATX Cabinet Black

Description

PRODUCT NAME	O11D EVO
COLOR	Black
DIMENSION	(D)465mm × (W)285mm × (H)459mm
MATERIAL	1. 4mm Aluminum 2. 4mm Tempered Glass 3. 1mm Steel Structure
MOTHERBOARD SUPPORT	E-ATX (width: under 280mm)/ATX /M-ATX/ITX
PSU SUPPORT	220mm
FAN SUPPORT	1. Top: 120mm × 3 or 140mm × 2 2. Side: 120mm × 3 or 140mm × 2 3. Bottom: 120mm × 3 or 140mm × 2 4. Rear: 120mm × 1 5. On Drive Cage: 60mm × 1
RADIATOR SUPPORT	1. Top: 360mm × 1 or 280mm × 1 2. Total max thickness: 87.5mm 3. Side: 360mm × 1 or 280mm × 1 4. Inner scenario total max thickness: 5. 83mm(120mm fan on top and bottom) 6. 63mm(140mm fan on top and bottom) 7. Outer scenario total max. thickness： 8. 120mm(120mm fan on top and bottom) 9. 100mm(140mm fan on top and bottom) 10. Bottom: 360mm × 1 11. Total max thickness: 87.5mm
DRIVE SUPPORT	1. Bottom：2.5” SSD × 4 or 3.5” HDD × 2 2. Side：2.5” SSD × 4 or 3.5” HDD × 2 3. Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1 4. Cable Management Bar：2.5” SSD × 2 Note:- 1. Only 9 sets of 2.5” SSD mounting pads are provided
GPU LENGTH CLEARANCE	426 mm
CPU HEIGHT CLEARANCE	167 mm
EXPANSION SLOTS	8
I/O PORTS	1. 2 × USB 3.0 2. 1 × USB 3.1 TYPE-C, 3. 1 × HD AUDIO/ MIC 4. LED Color and Mode button 5. Reset Button 6. Power Button
DUST FILTER	Bottom × 1
WARRANTY	1 year
