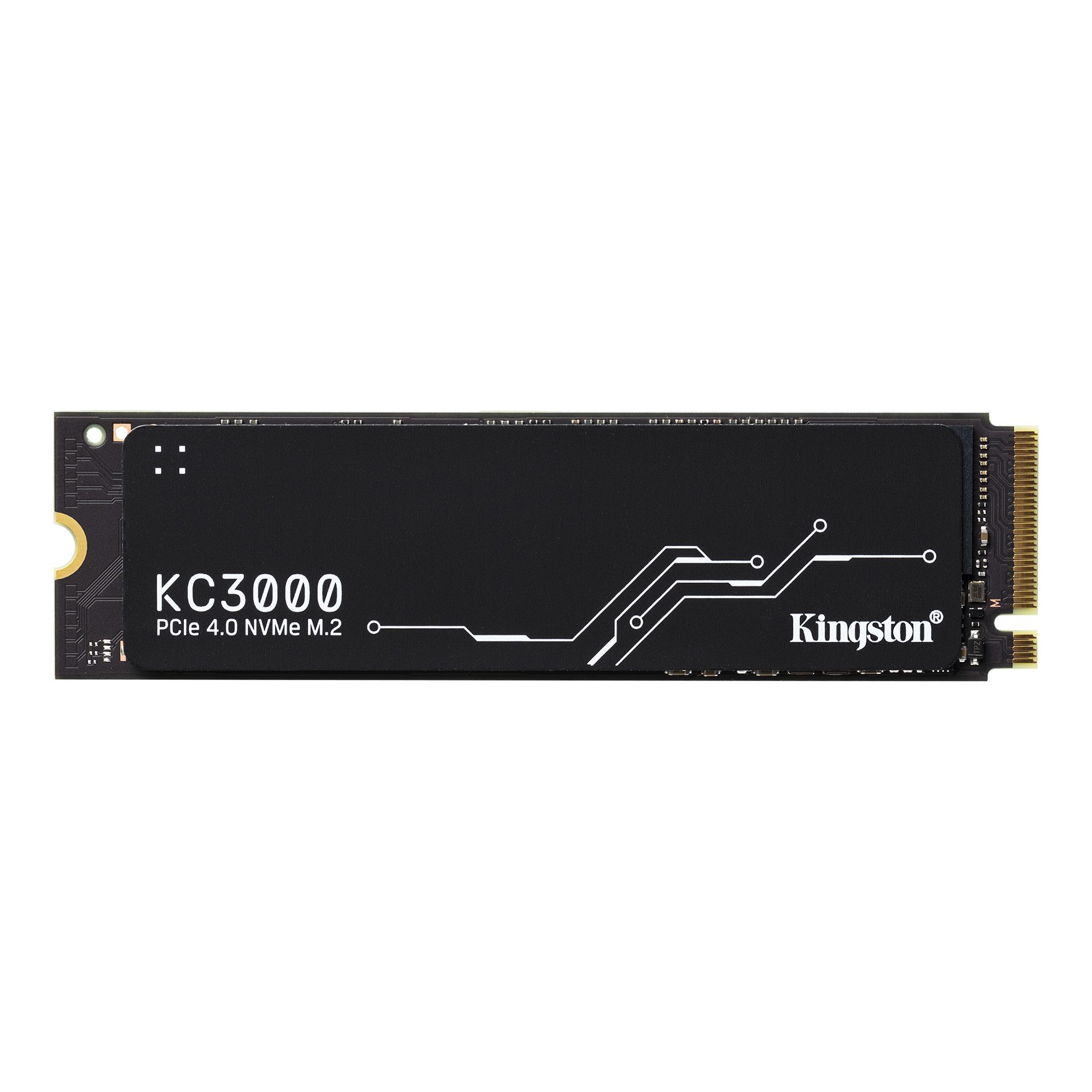

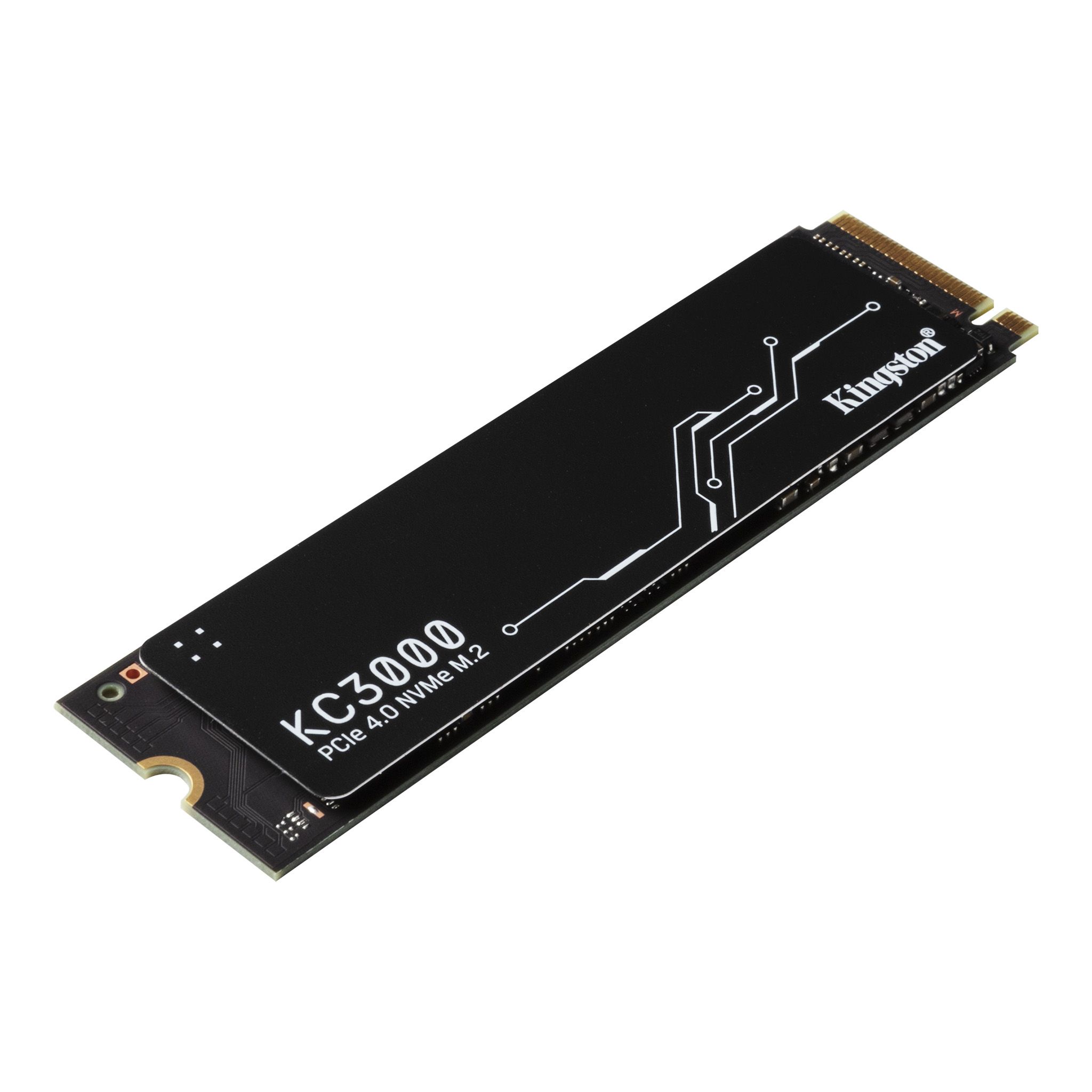

Kingston KC3000 2TB M.2 NVMe Gen4 Internal SSD

Description

FORM FACTOR	M.2 2280
INTERFACE	PCIe 4.0 x4 NVMe
CAPACITIES2	512GB, 1024GB, 2048GB, 4096GB
CONTROLLER	Phison E18
NAND	3D TLC
SEQUENTIAL READ/WRITE	1. 512GB – 7,000/3,900MB/s 2. 1024GB – 7,000/6,000MB/s 3. 2048GB – 7,000/7,000MB/s 4. 4096GB – 7,000/7,000MB/s
RANDOM 4K READ/WRITE1	1. 512GB – up to 450,000/900,000 IOPS 2. 1024GB – up to 900,000/1,000,000 IOPS 3. 2048GB – up to 1,000,000/1,000,000 IOPS 4. 4096GB – up to 1,000,000/1,000,000 IOPS
TOTAL BYTES WRITTEN (TBW)3	1. 512GB – 400TBW 2. 1024GB – 800TBW 3. 2048GB – 1.6PBW 4. 4096GB – 3.2PBW
POWER CONSUMPTION	1. 512GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write 2. 1024GB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write 3. 2048GB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write 4. 4096GB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write
STORAGE TEMPERATURE	-40°C~85°C
OPERATING TEMPERATURE	0°C~70°C
DIMENSIONS	1. 80mm x 22mm x 2.21mm (512GB-1024GB) 2. 80mm x 22mm x 3.5mm (2048GB-4096GB)
WEIGHT	1. 512GB-1024GB – 7g 2. 2048GB-4096GB – 9.7g
VIBRATION OPERATING	2.17G peak (7-800Hz)
VIBRATION NON-OPERATING	20G Peak (20-1000Hz)
MTBF	2,000,000 hours
WARRANTY	Limited 5-year warranty with free technical support
