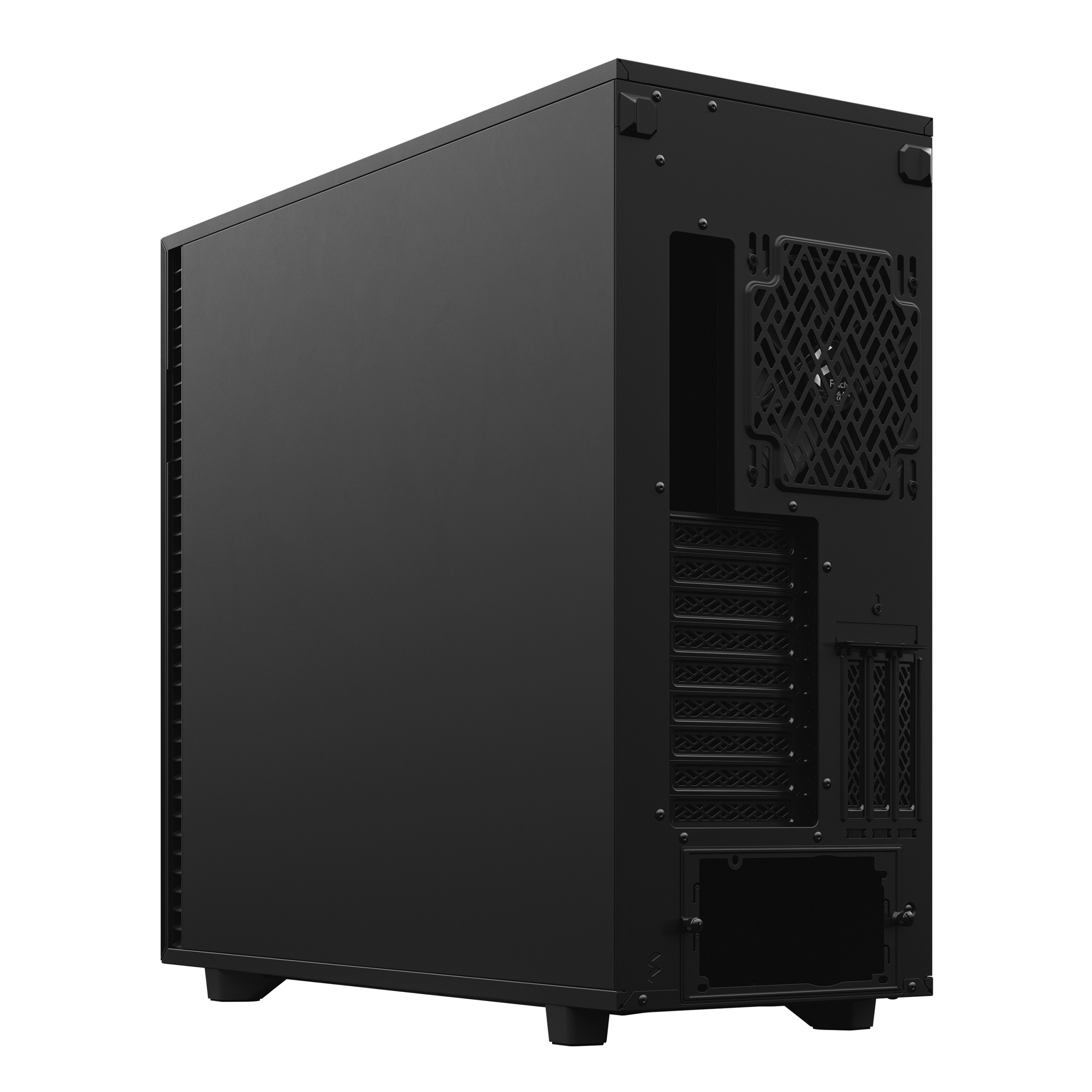

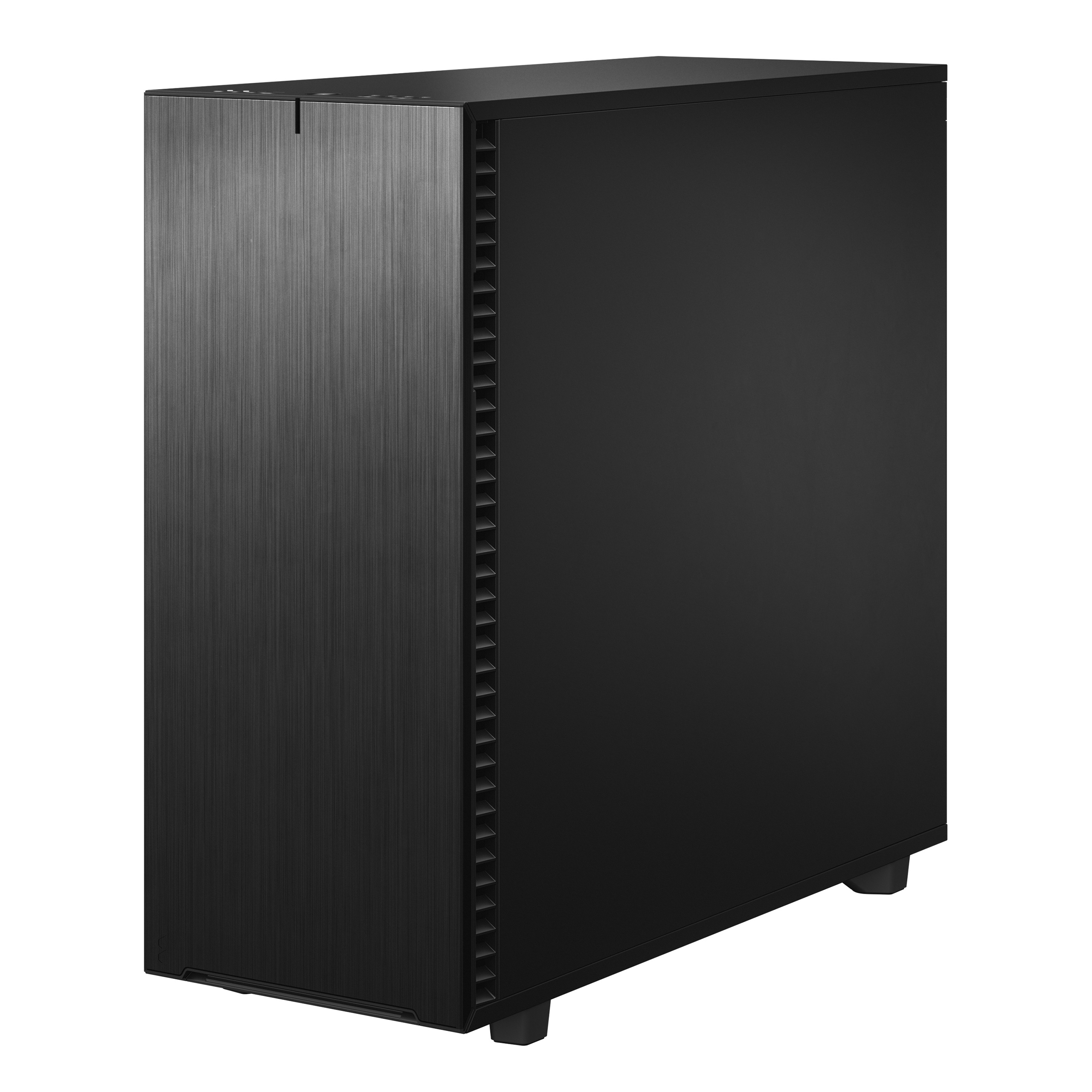

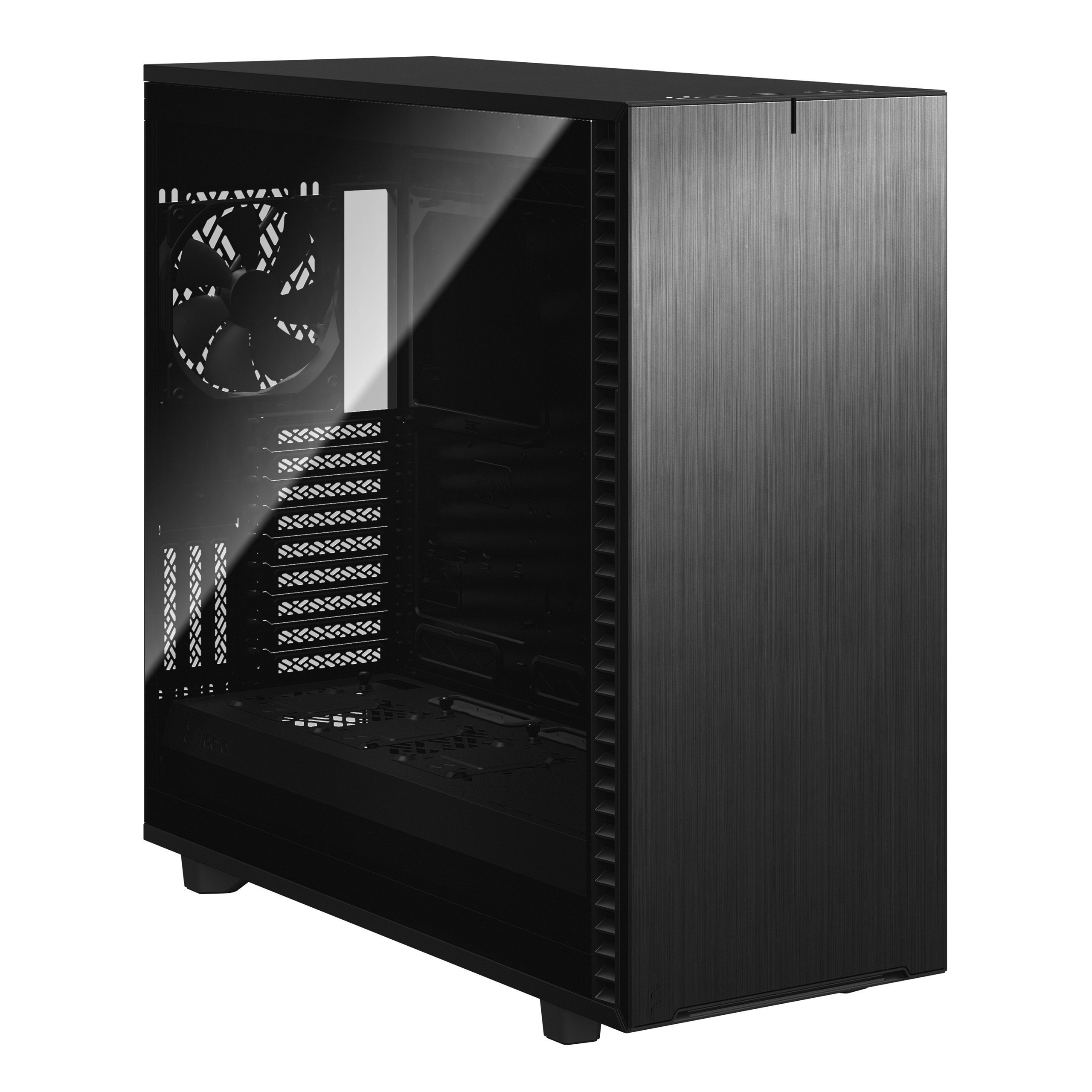

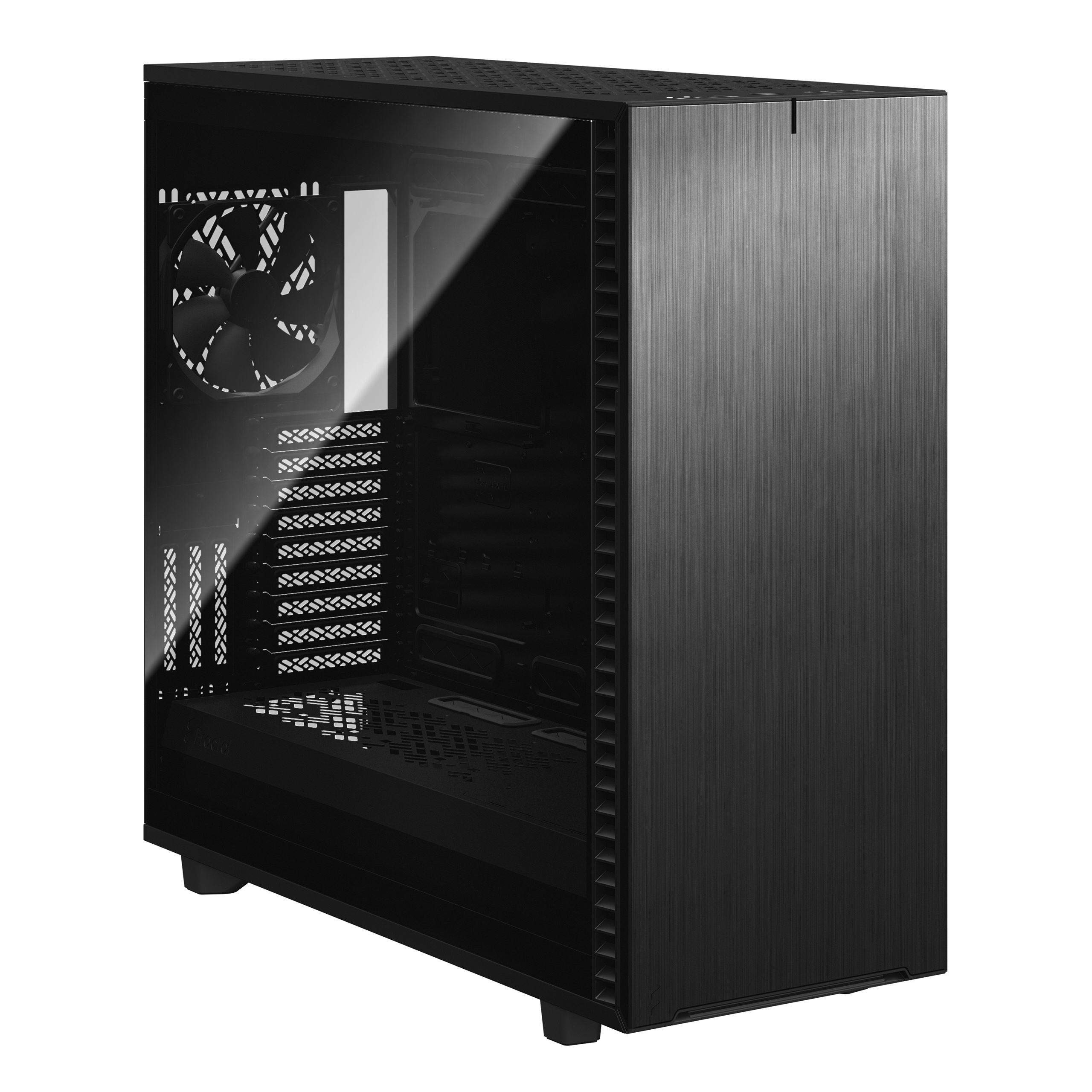

Fractal Design Define 7 XL TG Light Tint E-ATX Full Tower Cabinet Black

Description

Additional information

3.5/2.5 UNIVERSAL DRIVE BRACKETS	6 + 2 included, 18 positions total
DEDICATED 2.5 DRIVE BRACKETS	2 included, 5 positions total
5.25 DRIVE MOUNTS	2
EXPANSIONS SLOTS	9 + 3

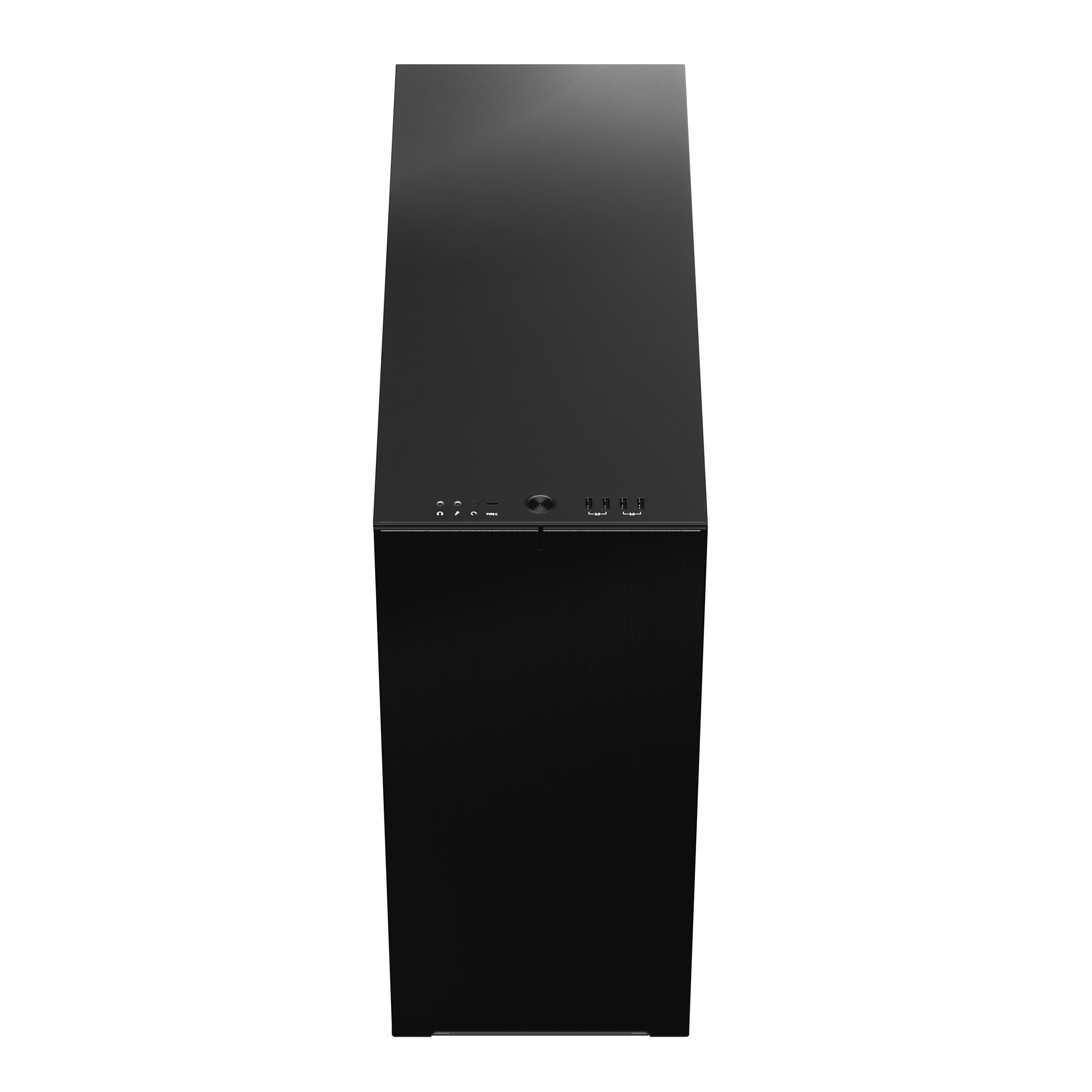

FRONT PORTS	1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
TOTAL FAN MOUNTS	11 x 120 mm or 9 x 140 mm
FORNT FAN	4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
TOP FAN	4 x 120 mm or 3 x 140 mm
REAR FAN	1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
BOTTOM FAN	2 x 120/140 mm

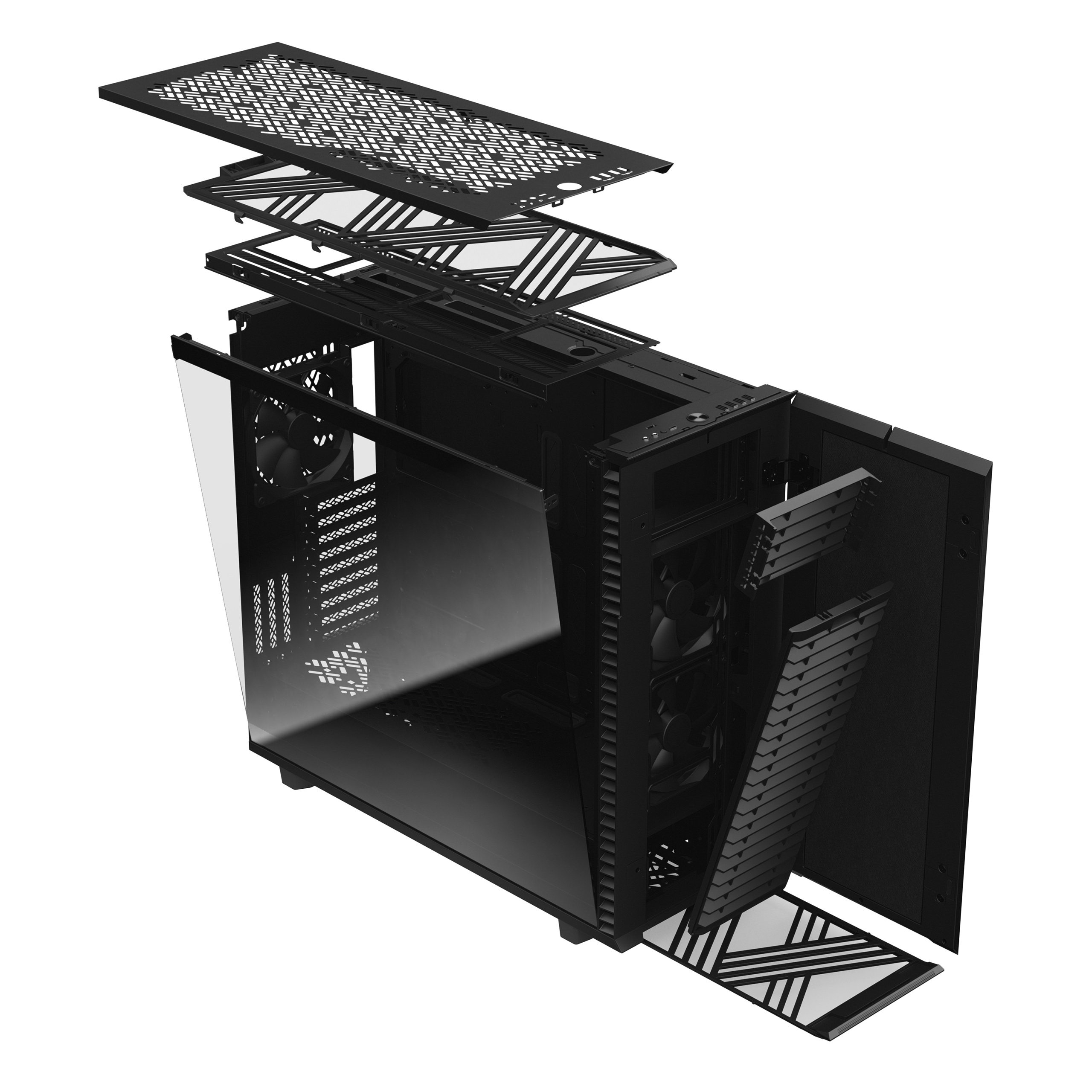

DUST FILTERS	Top, 2 x Front, Bottom + PSU
FIXED VELCRO STRAPS	Yes
CABLE ROUTING GROMMETS	Yes
CAPTIVE THUMBSCREWS	HDD brackets, SSD brackets, PSU bracket

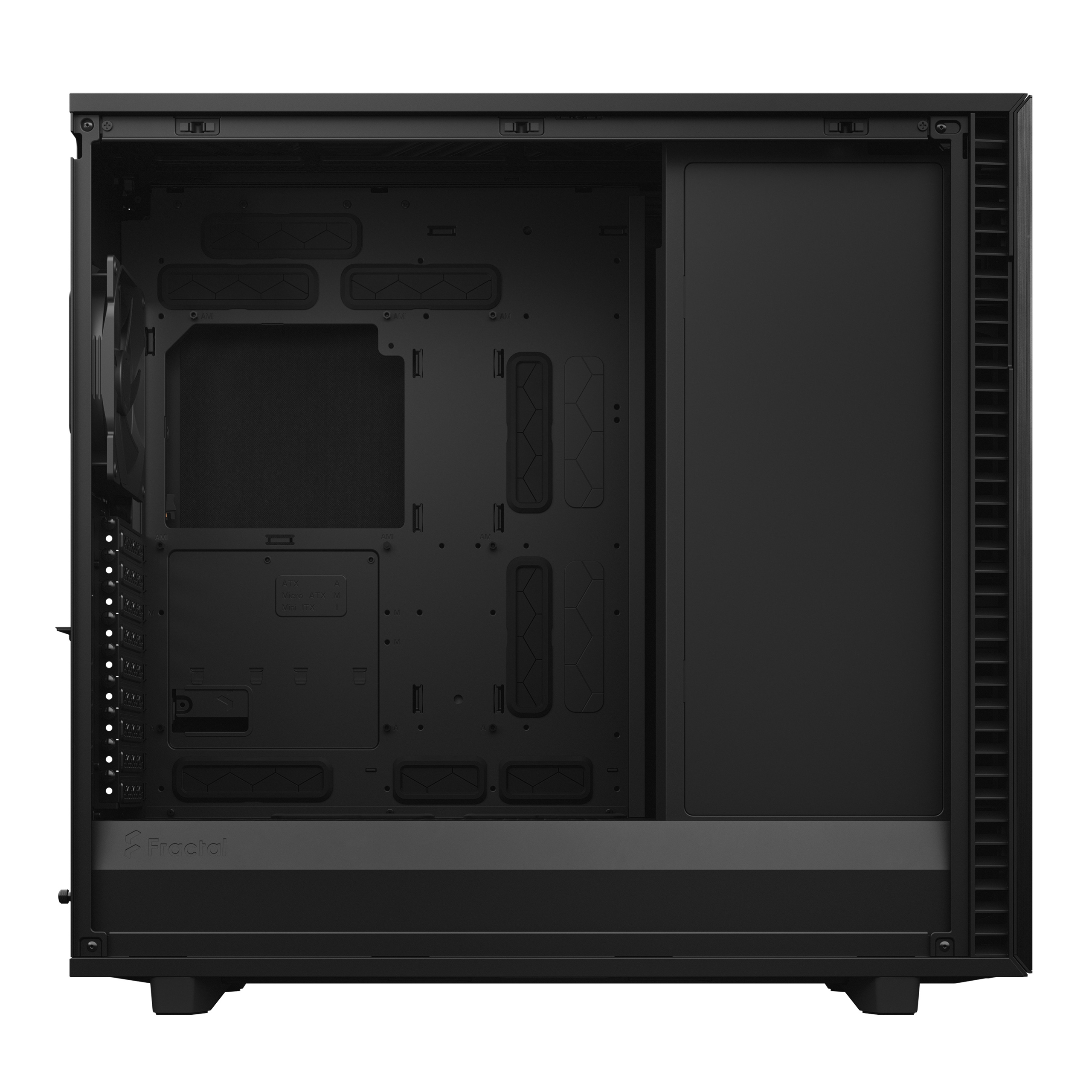

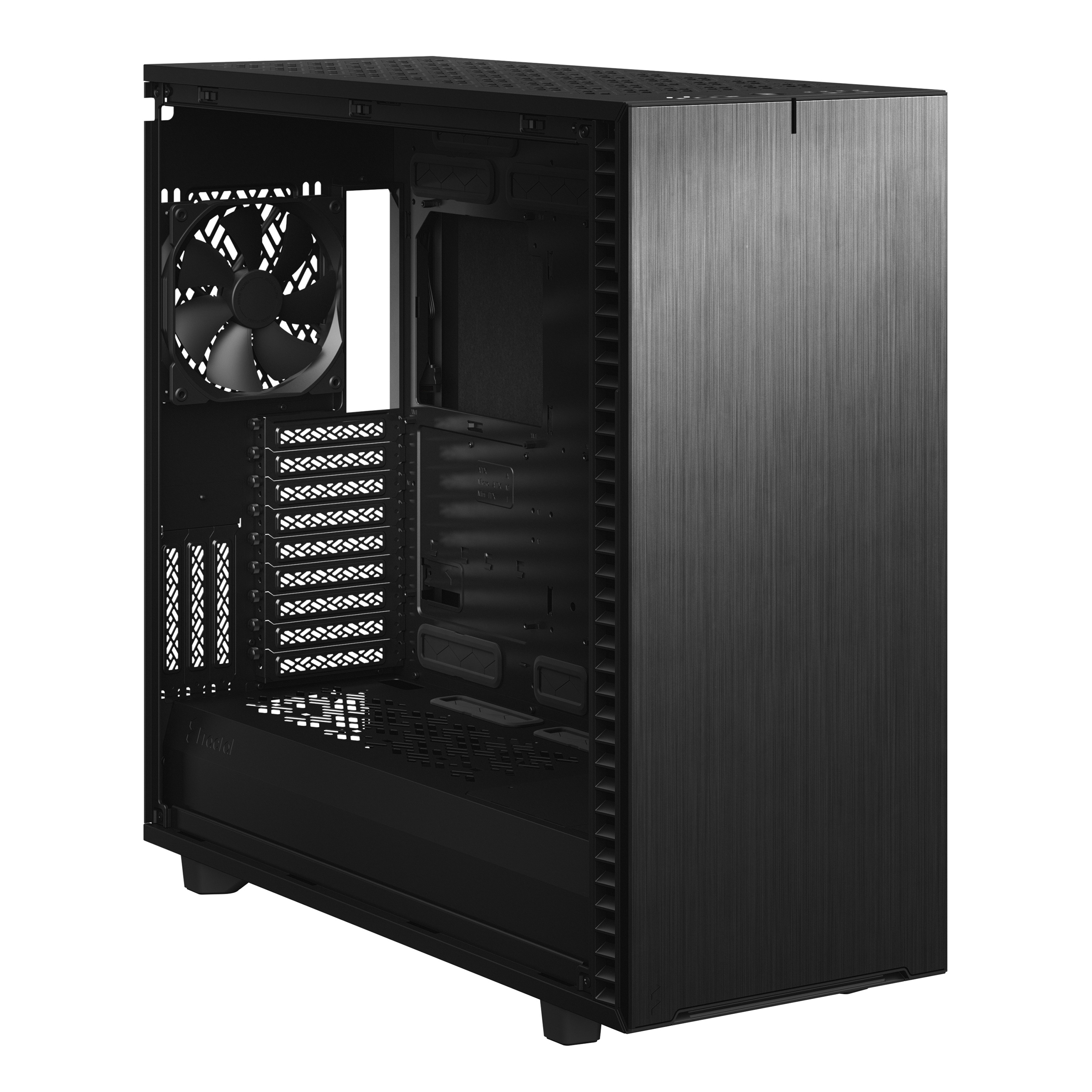

LEFT SIDE PANEL	Industrial sound-damped steel or Tempered Glass
RIGHT SIDE PANEL	Industrial sound-damped steel
MOTHERBOARD COMPATIBILITY	E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
POWER SUPPLY TYPE	ATX
PSU MAX LENGHT	250 mm (both HDD cages installed)
GPU MAX LENGHT	Storage layout: 340 mm – Open layout: 530 mm (505 mm w/ front fan)
CPU COOLER MAX HEIGHT	185 mm
FRONT RADIATOR	Up to 480/420 mm
TOP RADIATOR	Up to 480/420 mm
REAR RADIATOR	120 mm
BOTTOM RADIATOR	Up to 240/280 mm

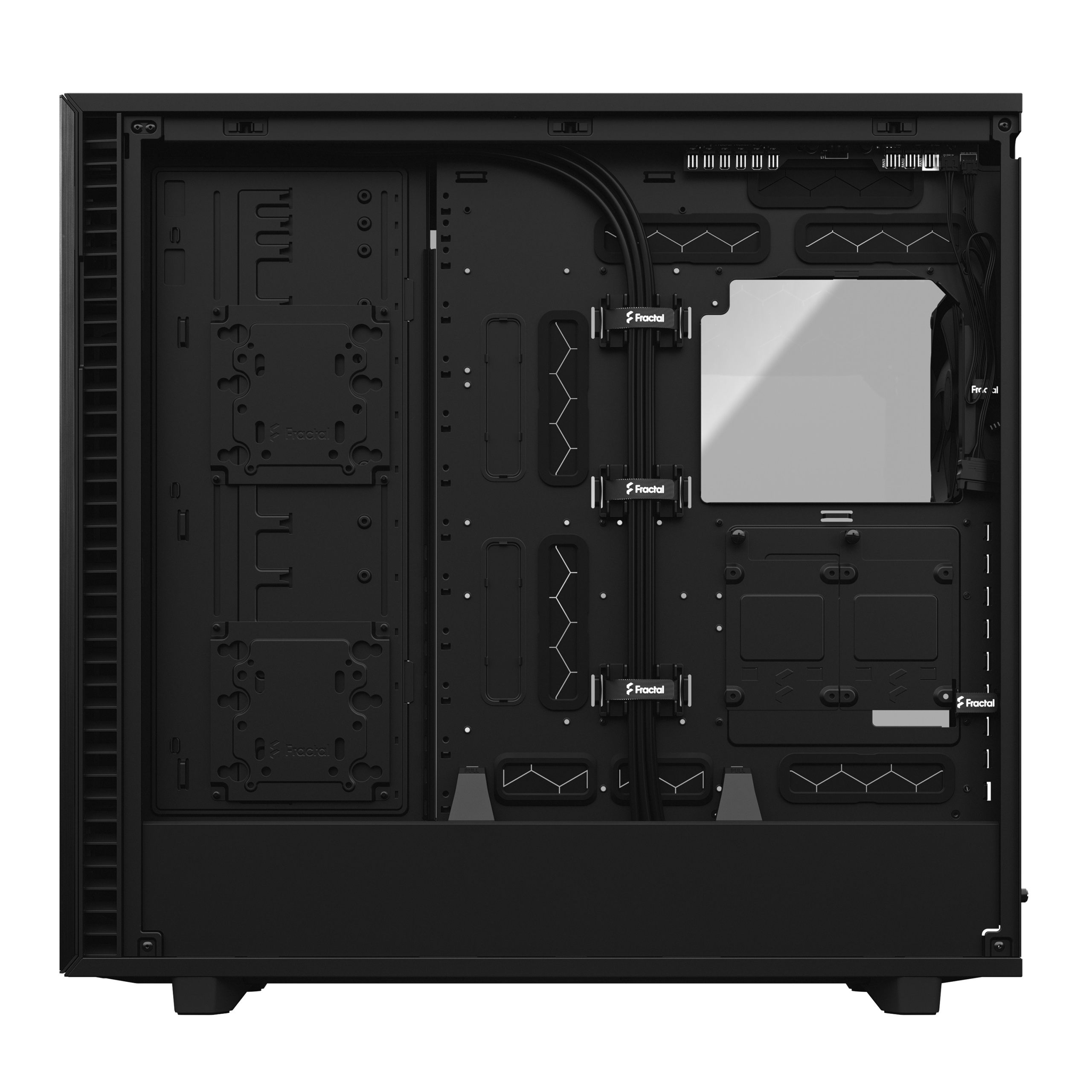

CABLE ROUTING SPACE	30 mm
VERICAL GPU SUPPORT (WITH FLEX B-20 OR FLEX VRC-25)	65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
CASE DIMENSIONS (LxWxH)	604 x 240 x 566 mm
CAS DIMENSIONS W/O FEET/PROTRUSIONS/SCREWS	590 x 240 x 548 mm
PACKAGE DIMENSIONS (LxWxH)	646 x 357 x 708 mm
NET WEIGHT	Solid Version: 16.53 kg, TG Version: 16.64 kg
PACKAGE WEIGHT	Solid Version: 18.73 kg, TG Version: 18.84 kg
VOLUME	77.6 liters
WARRANTY	2 Years

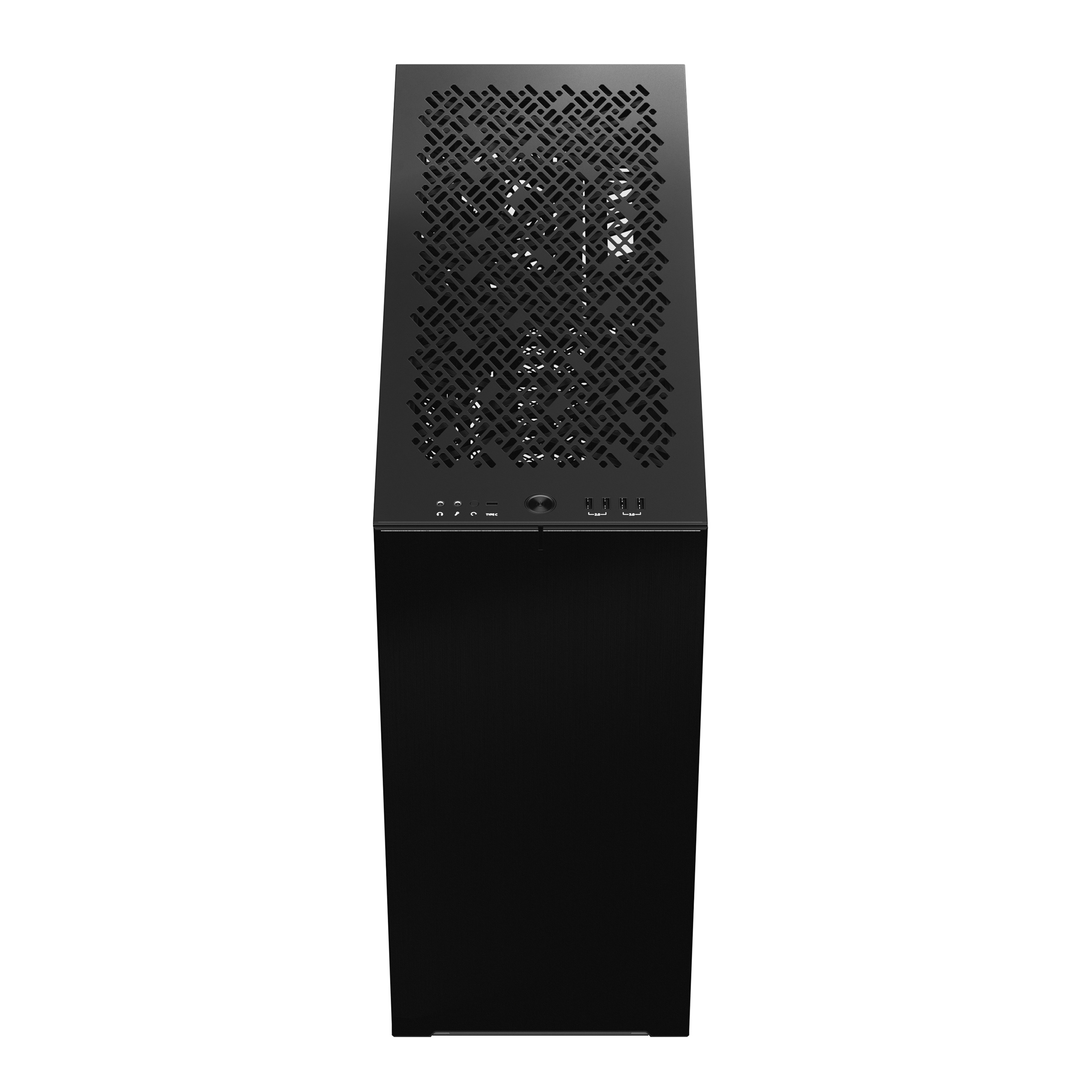

PACKAGE CONTENTS	Define 7 XL – Accessory box – User manual – Ventilated top panel – ODD bracket – ODD bay cover – 2 x HDD/SSD trays
EAN	Solid: 7340172702047, TG Dark Tint: 7340172702061, TG Light Tint: 7340172702054
UPC	Solid: 843276102043 TG Dark Tint: 843276102067, TG Light Tint: 843276102050
JAN	Solid: 4537694274296 TG Dark Tint: 4537694275385, TG Light Tint: 4537694274302
PRODUCT CODE	Solid: FD-C-DEF7X-01, TG Dark Tint: FD-C-DEF7X-03, TG Light Tint: FD-C-DEF7X-02
