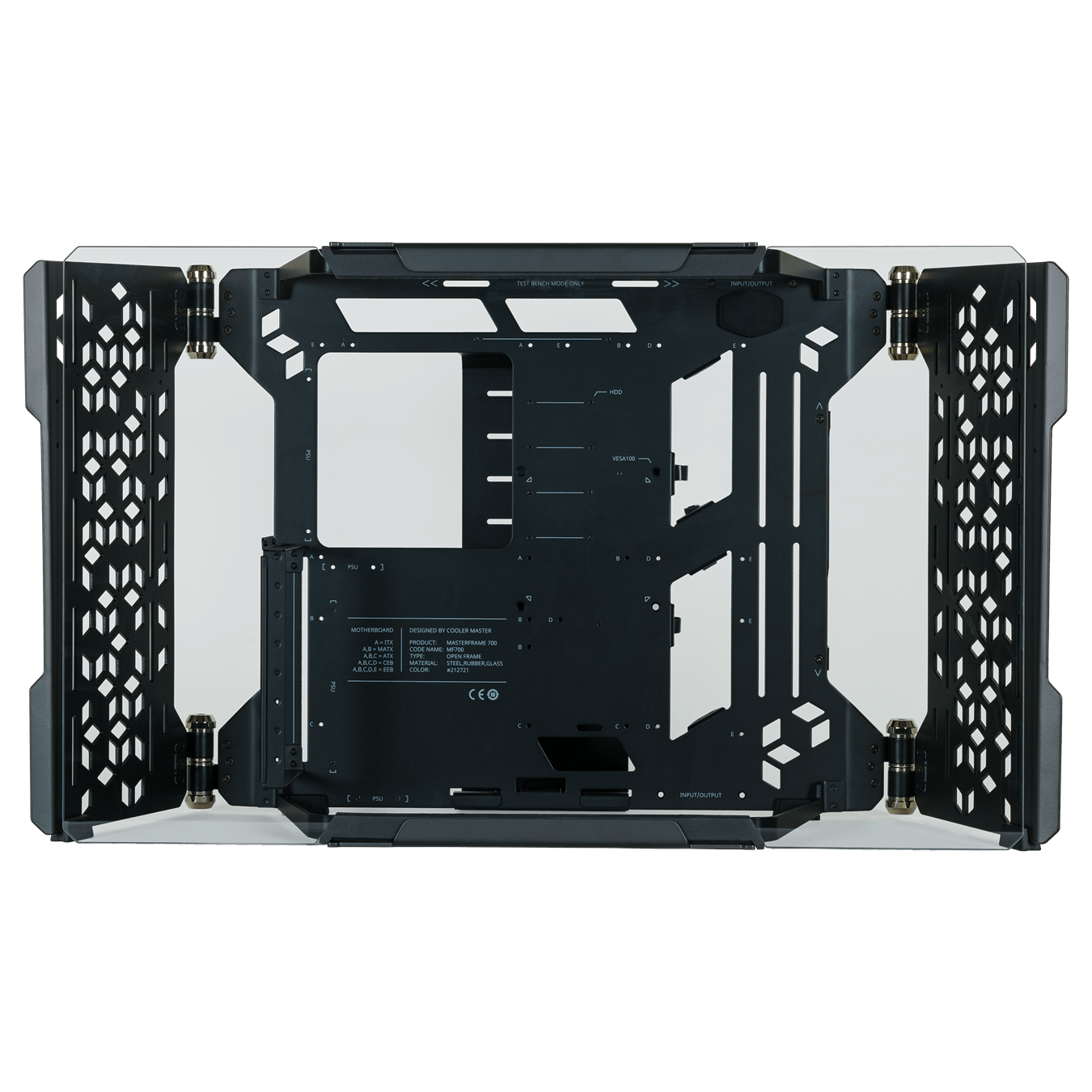

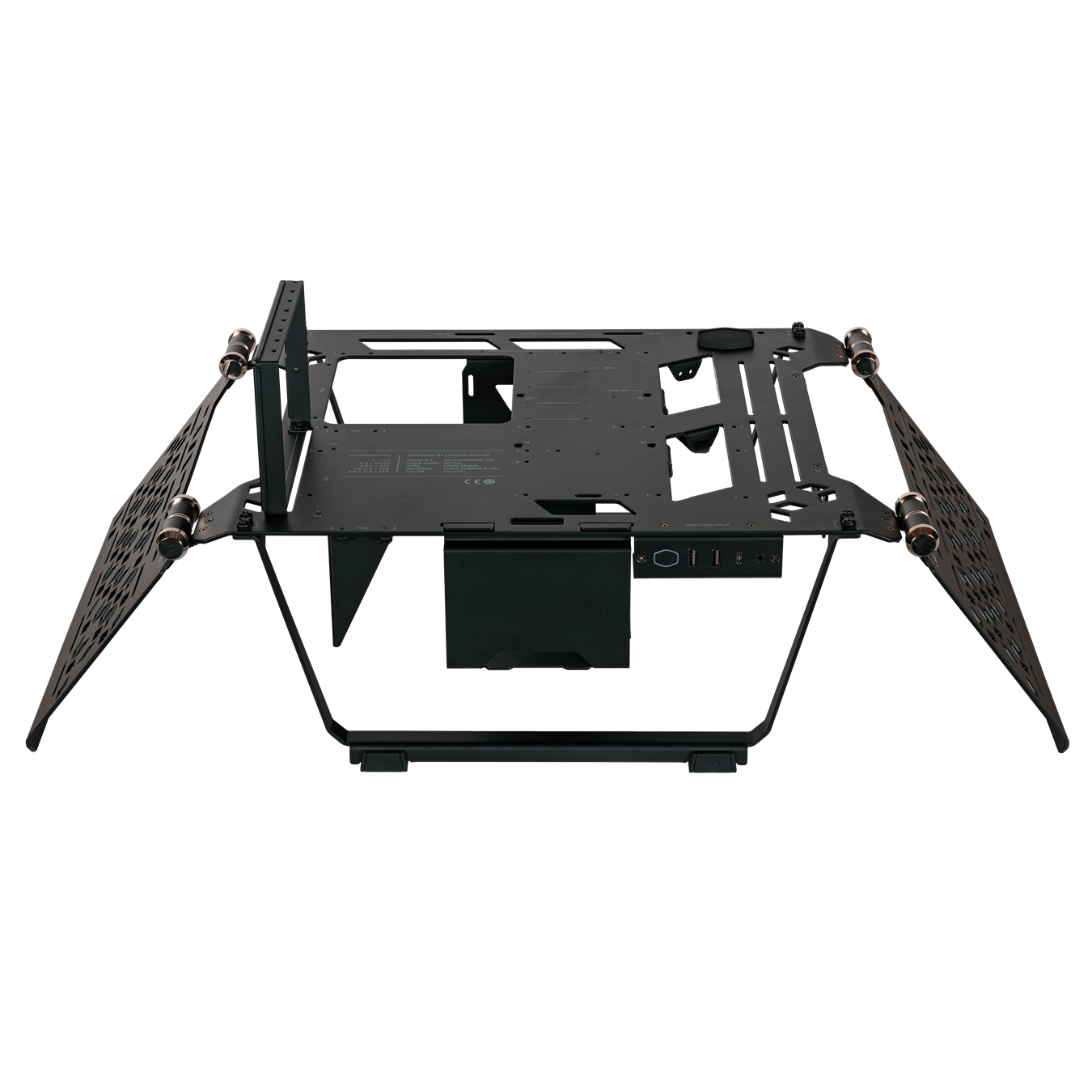

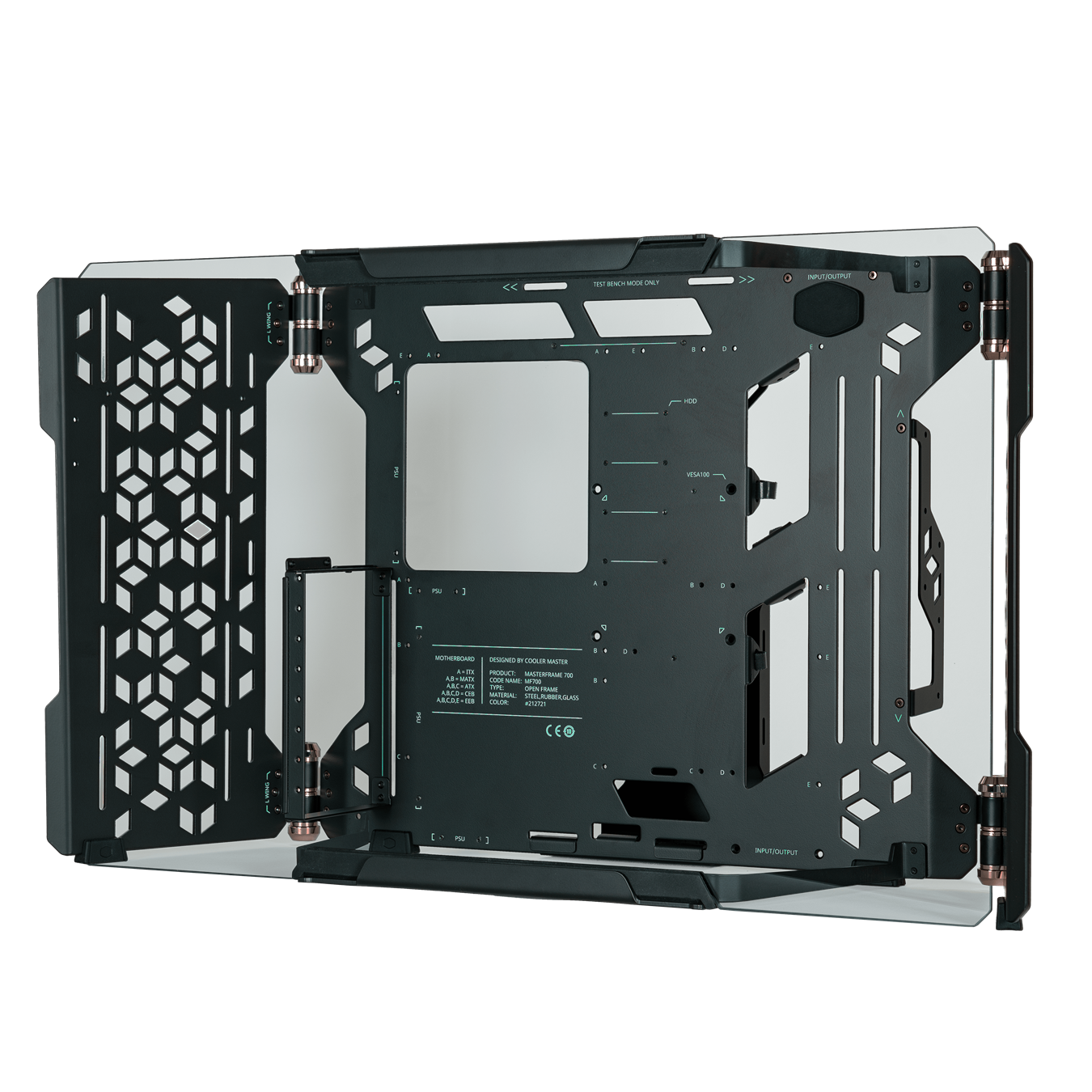

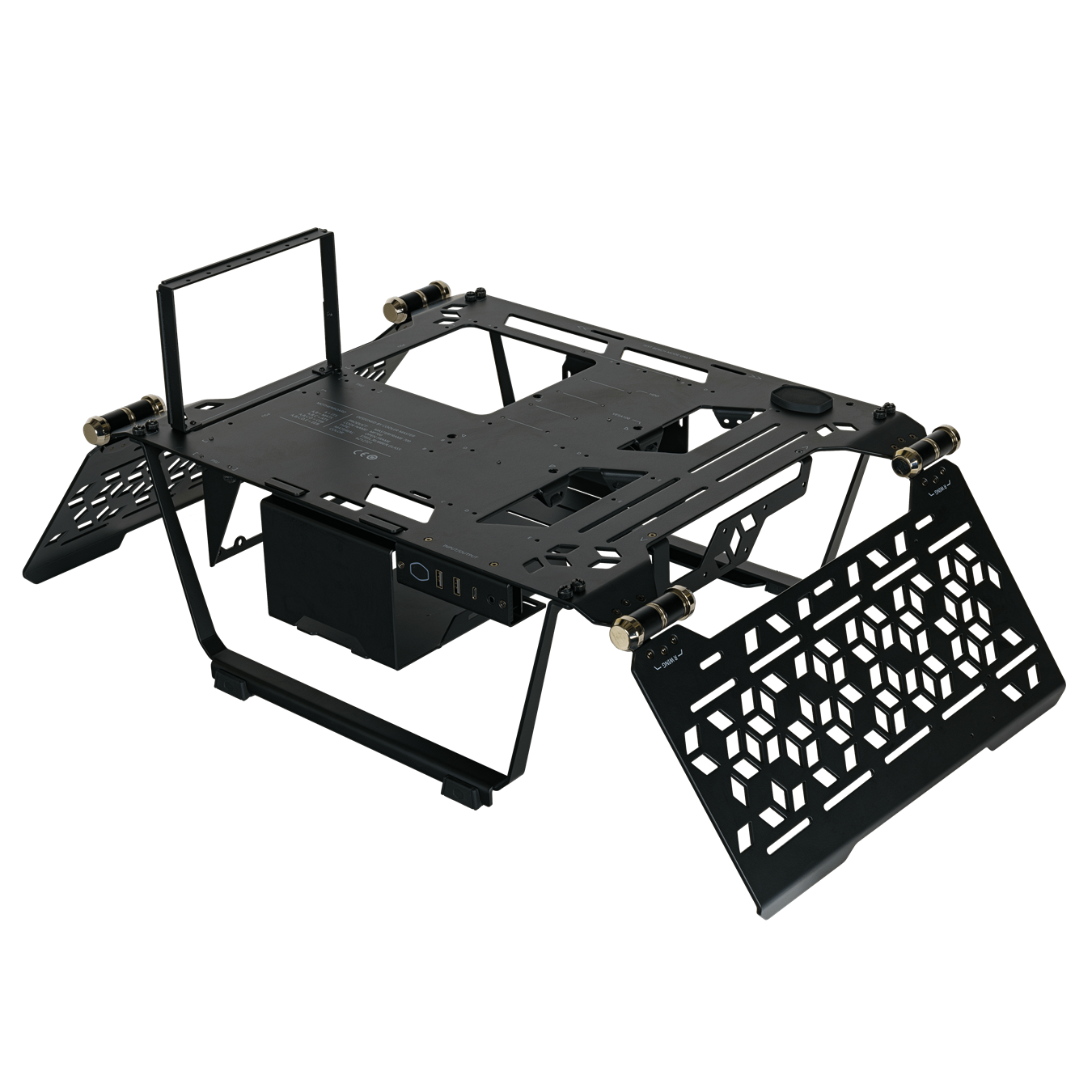

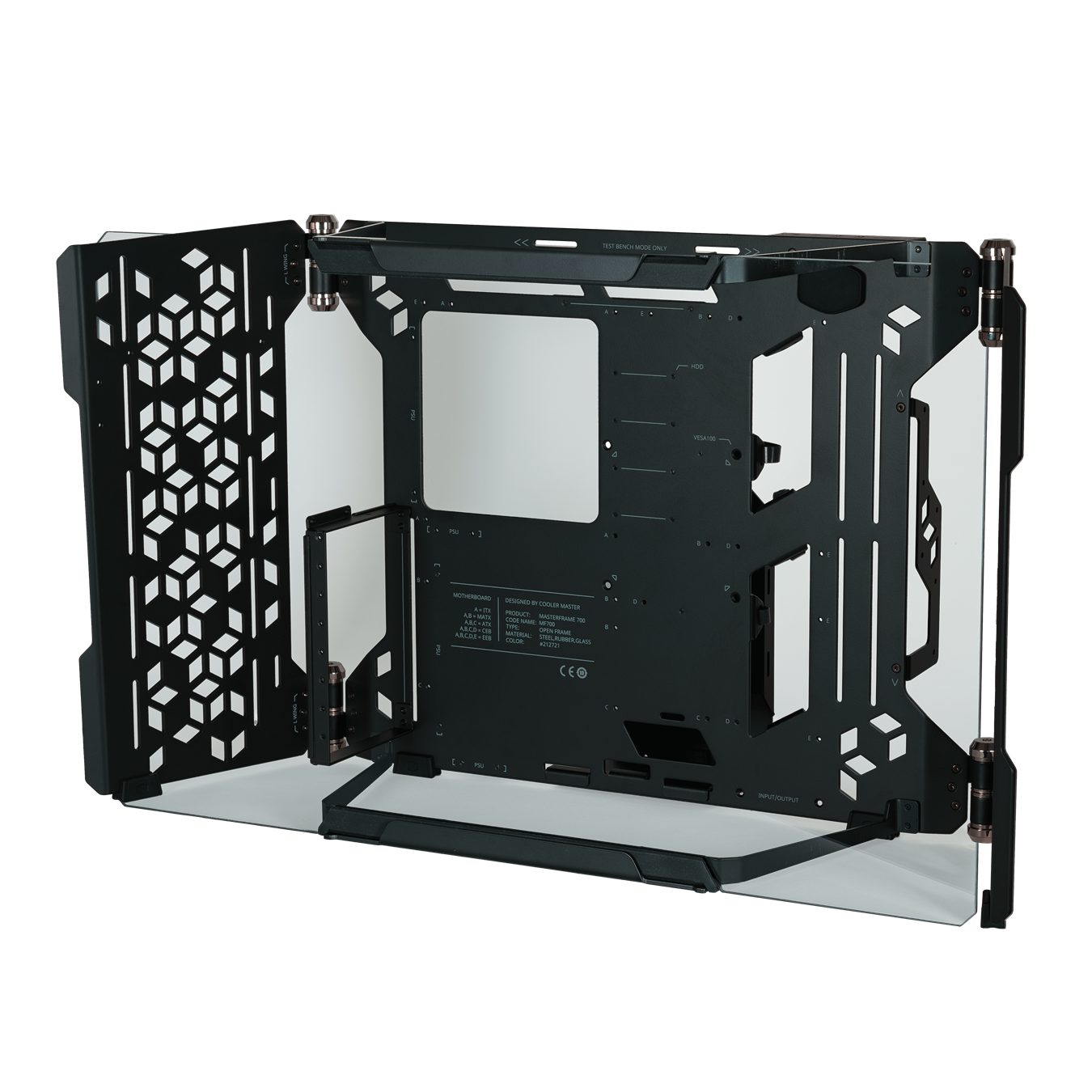

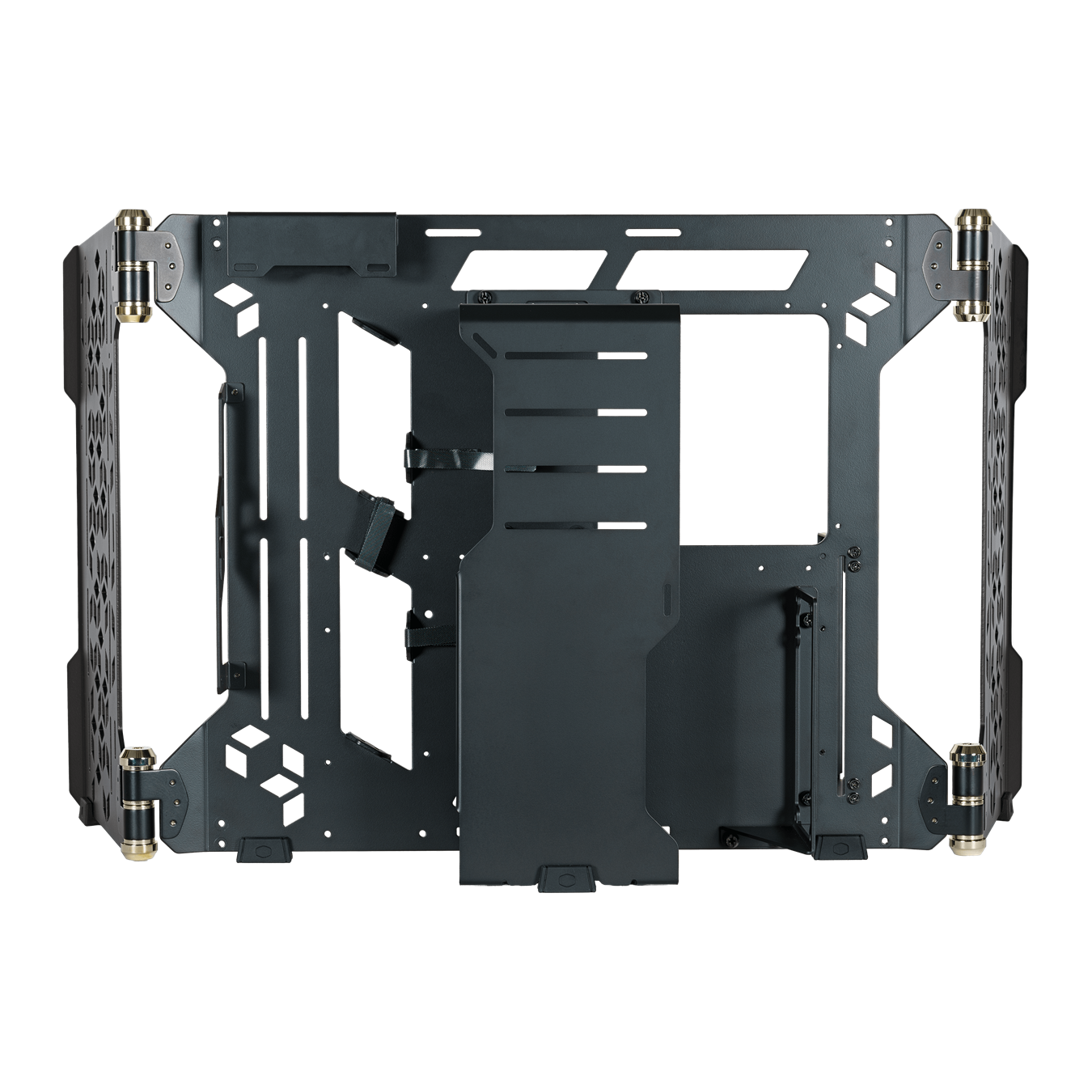

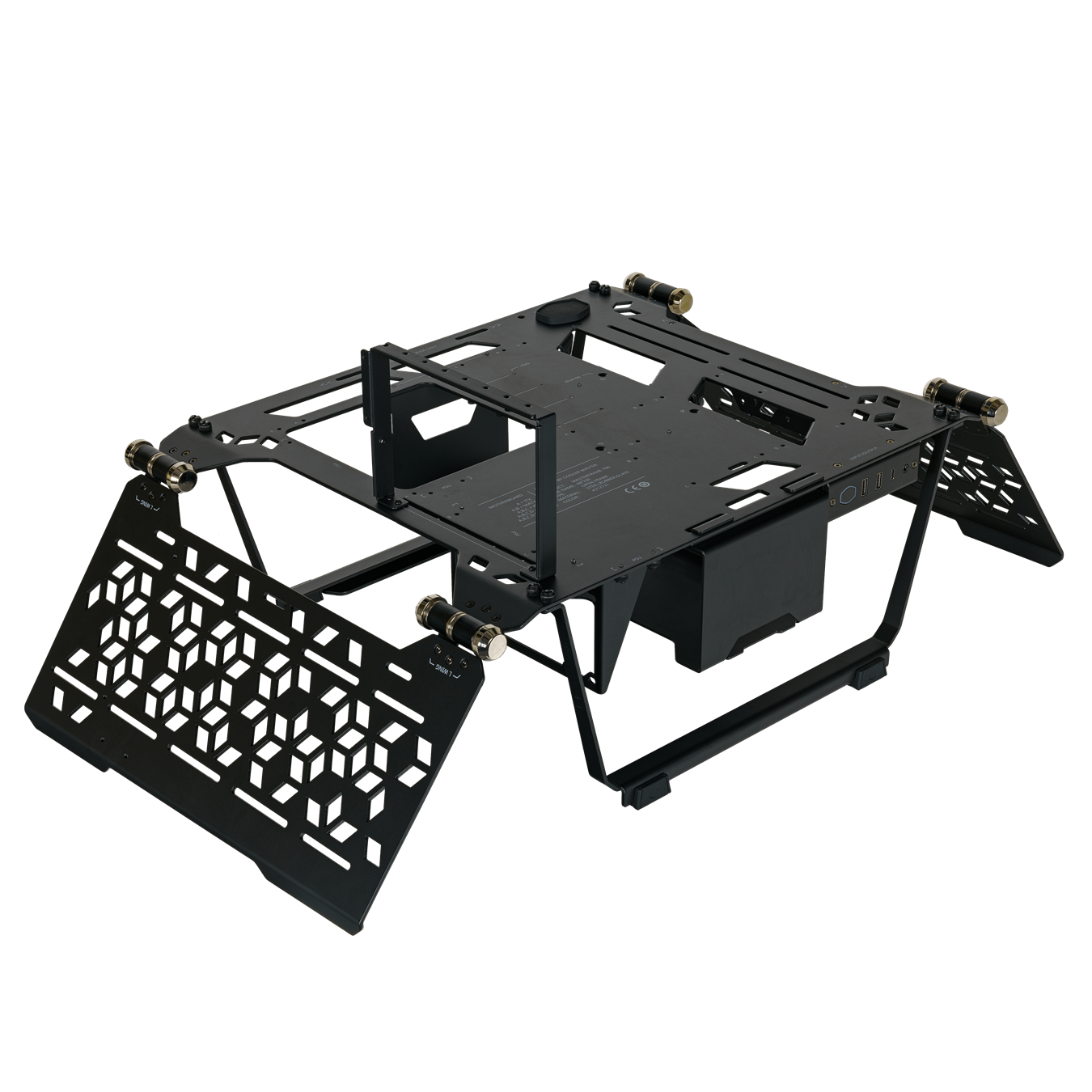

Cooler Master MasterFrame 700 Open Air Frame Cabinet Black

Description

SERIES	MasterFrame Series
SIZE	Full Tower
COLORS	Black
MATERIALS	Steel, Tempered Glass
DIMENSIONS (L x W x H)	702 x 306 x 410mm / 27.64 x 12.05 x 16.14inch (Incl. Panels)
MOTHERBOARD SUPPORT	SSI EEB, SSI CEB, XL-ATX, E-ATX, ATX, Micro ATX, Mini ITX
EXPANSION SLOTS	8
5.25 DRIVE BAYS	N/A
2.5 / 3.5 DRIVE BAYS (COMBO)	Up to 4 (PSU cover)
2.5 DRIVE BAYS	7 (3 SSD brackets + 4 PSU cover)

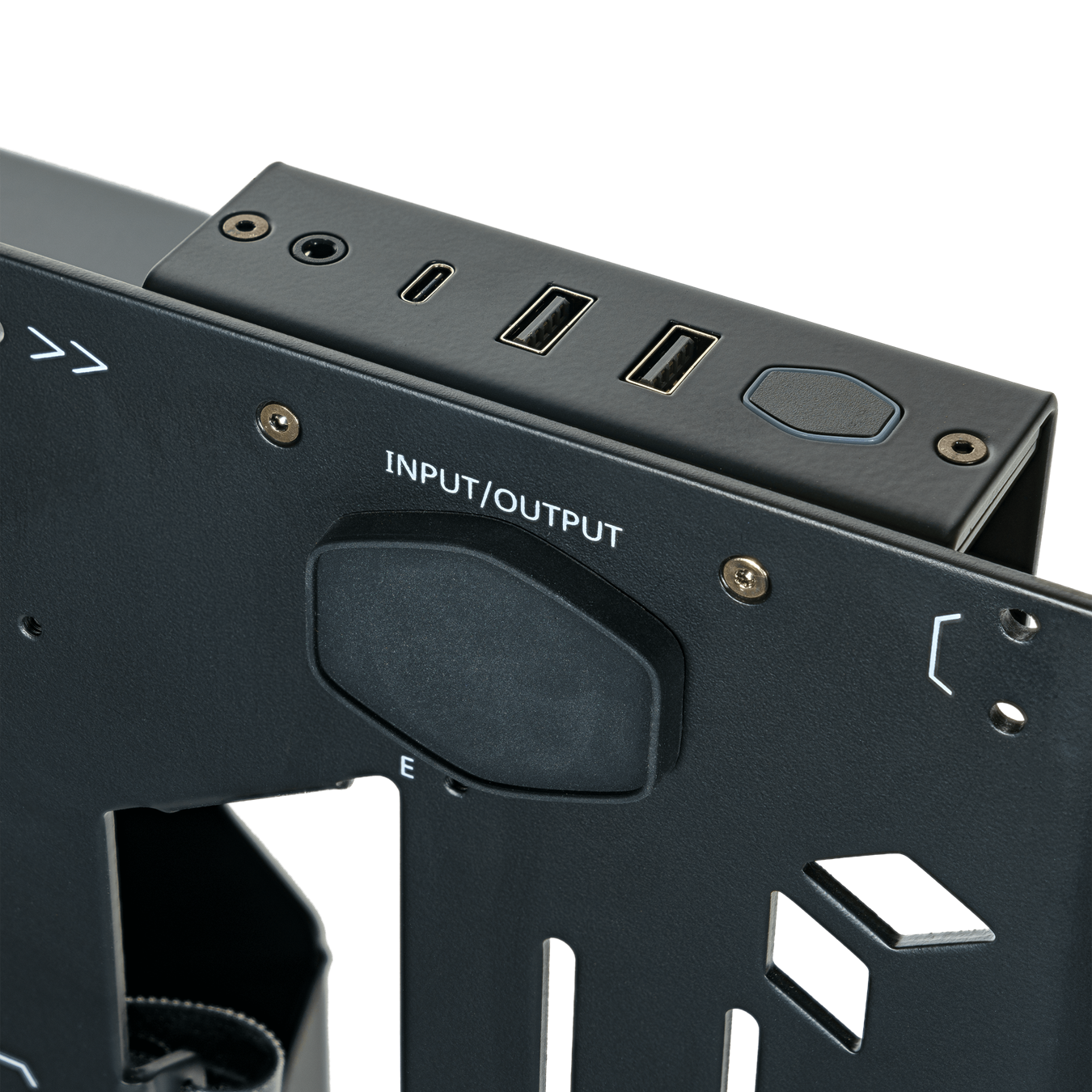

I/O PANEL	2x USB 3.1 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS – TOP	N/A
PRE-INSTALLED FANS – FRONT	N/A
PRE-INSTALLED FANS – REAR	N/A
PRE-INSTALLED FANS – BOTTOM	N/A
FAN SUPPORT – TOP	N/A
FAN SUPPORT – FRONT	N/A
FAN SUPPORT – RIGHT SIDE	3x 120mm / 2x 140mm
FAN SUPPORT – LEFT SIDE	3x 120mm / 2x 140mm
RADIATOR SUPPORT – TOP	Up to 360/420mm
RADIATOR SUPPORT – RIGHT SIDE	Up to 280/360mm
RADIATOR SUPPORT – LEFT SIDE	Up to 280/360mm
CLEARANCE – CPU COOLER	158mm / 6.22inch
CLEARANCE – PSU	210mm / 8.26inch
CLEARANCE – GFX	Up to 450mm / 17.71inch, 310mm / 12.20inch recommended for maximum compatibility
CABLE ROUTING	100mm
DUST FILTERS	N/A
POWER SUPPLY SUPPORT	2x ATX
