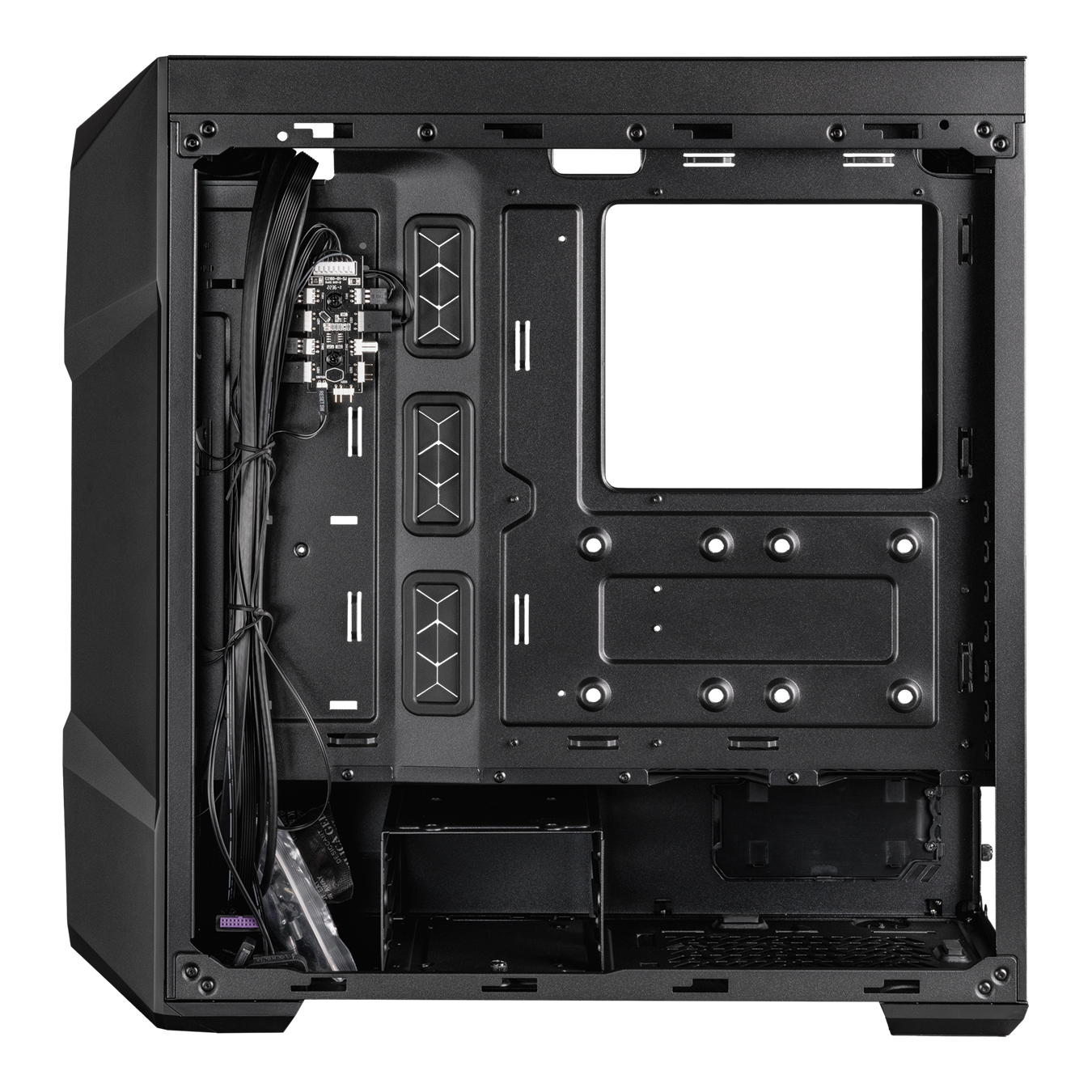

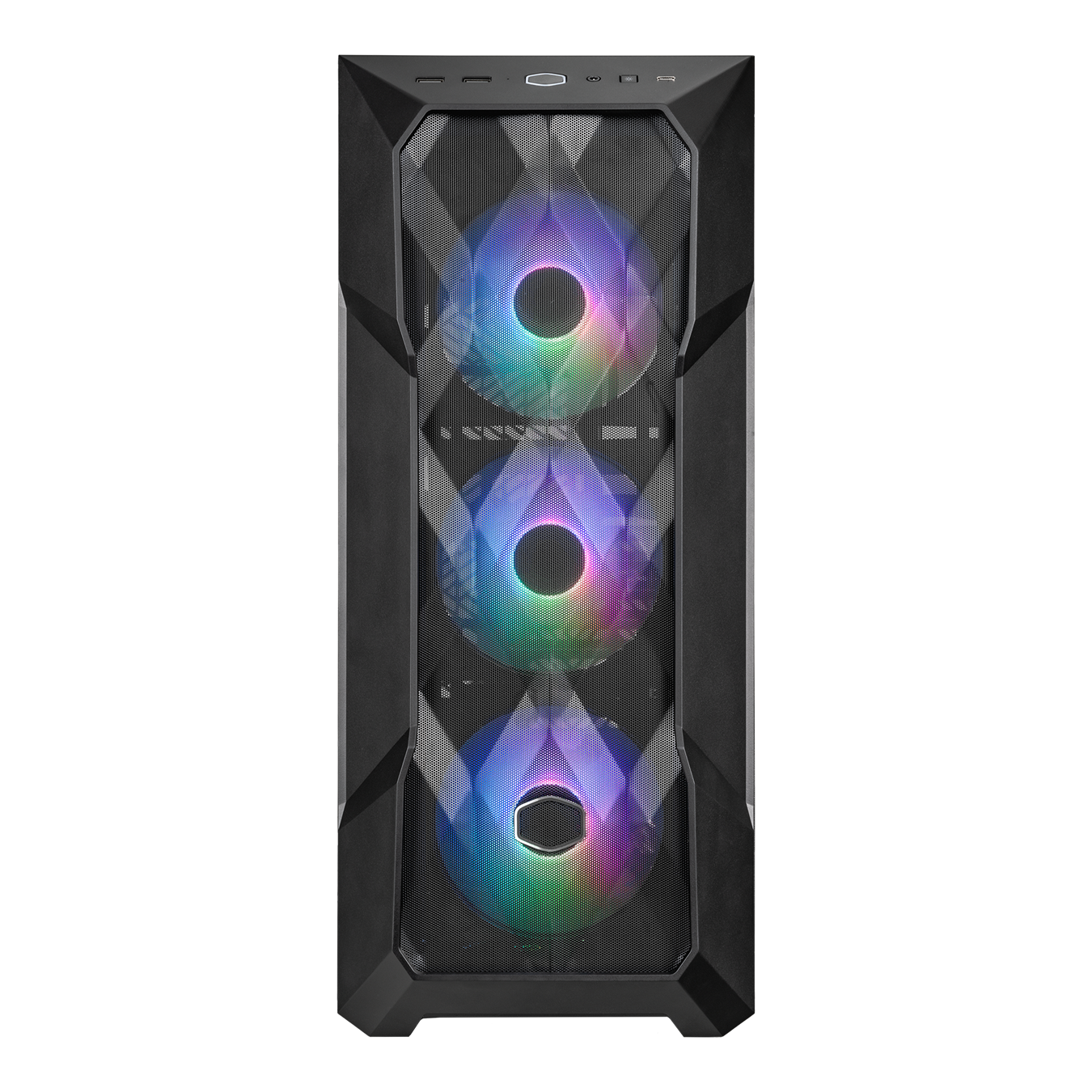

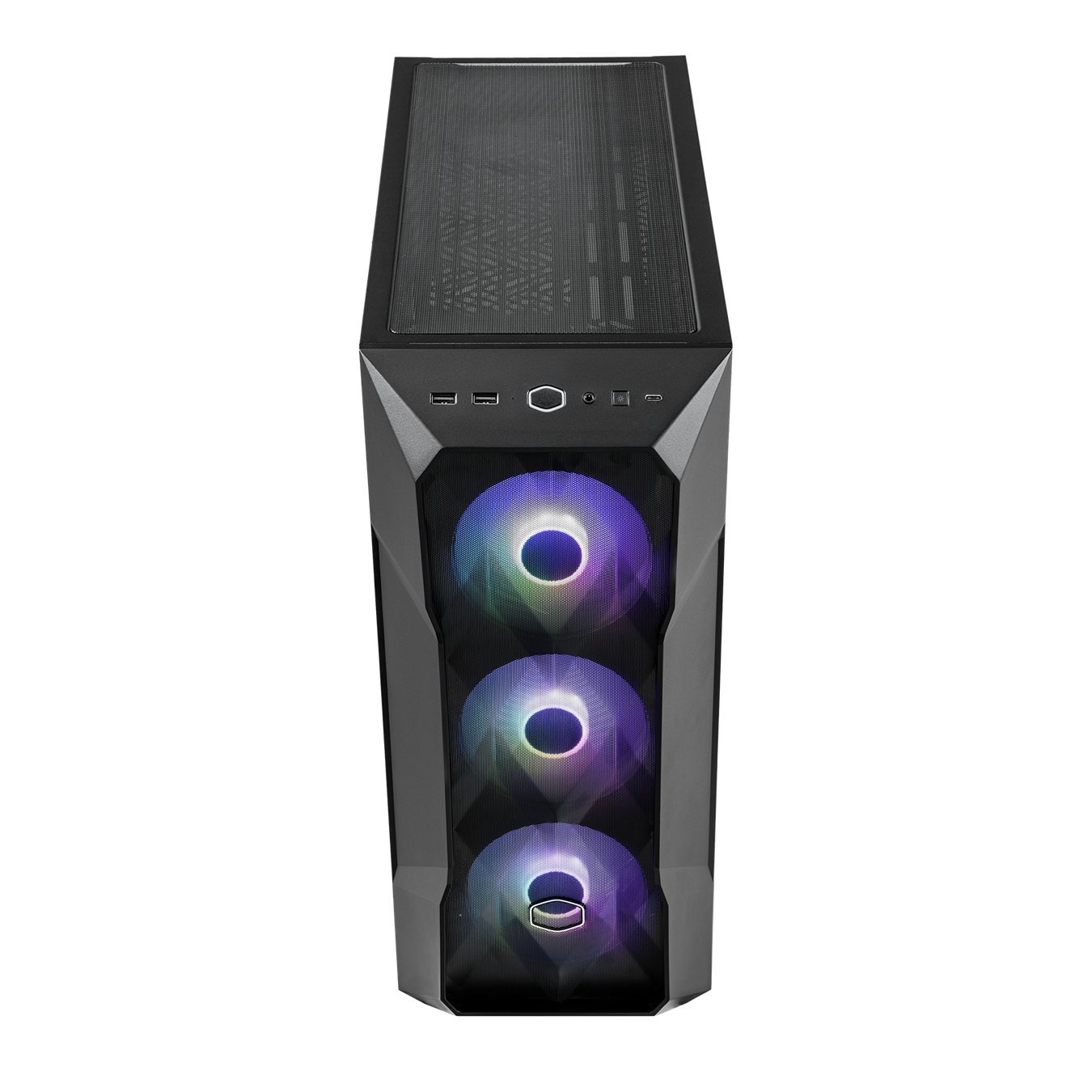

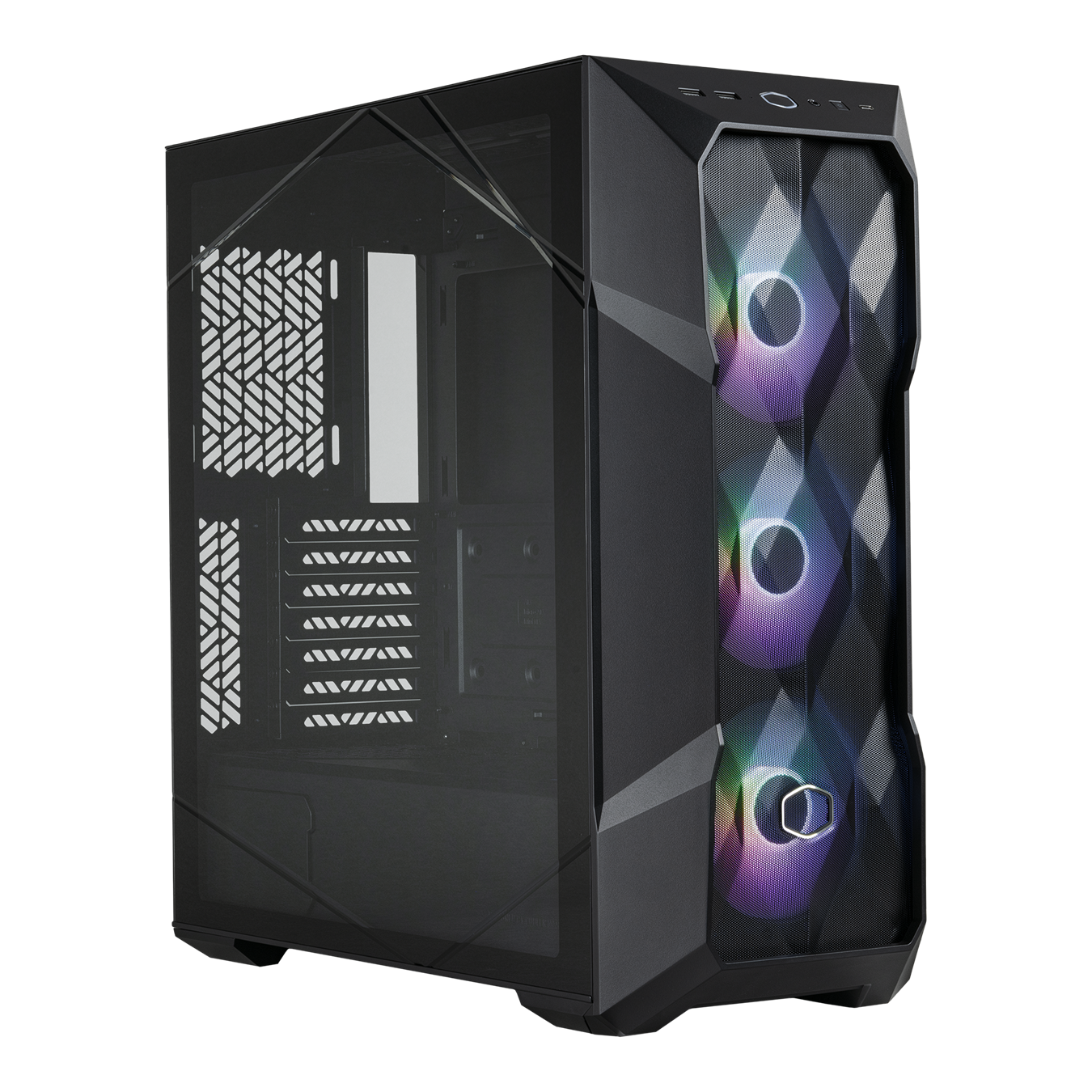

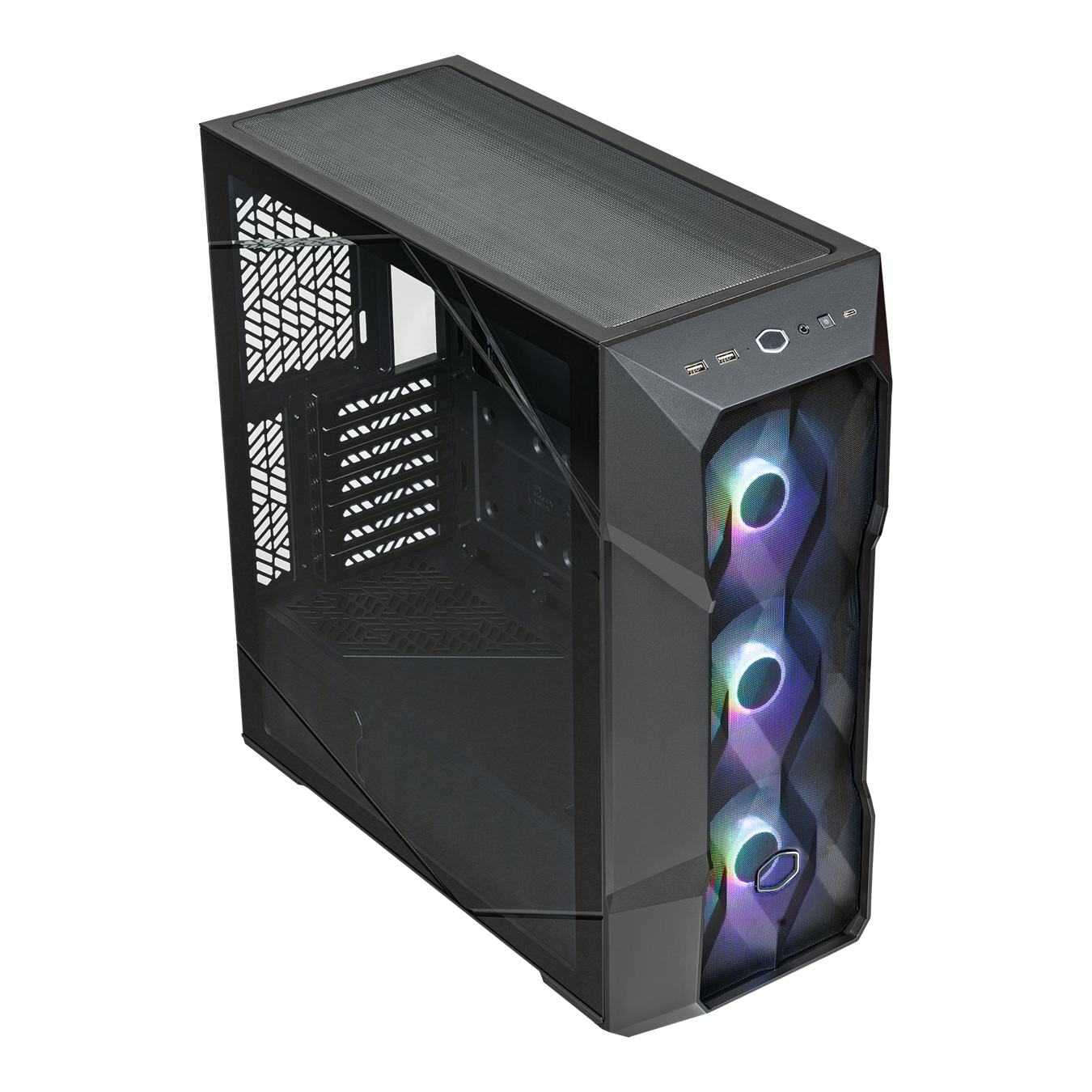

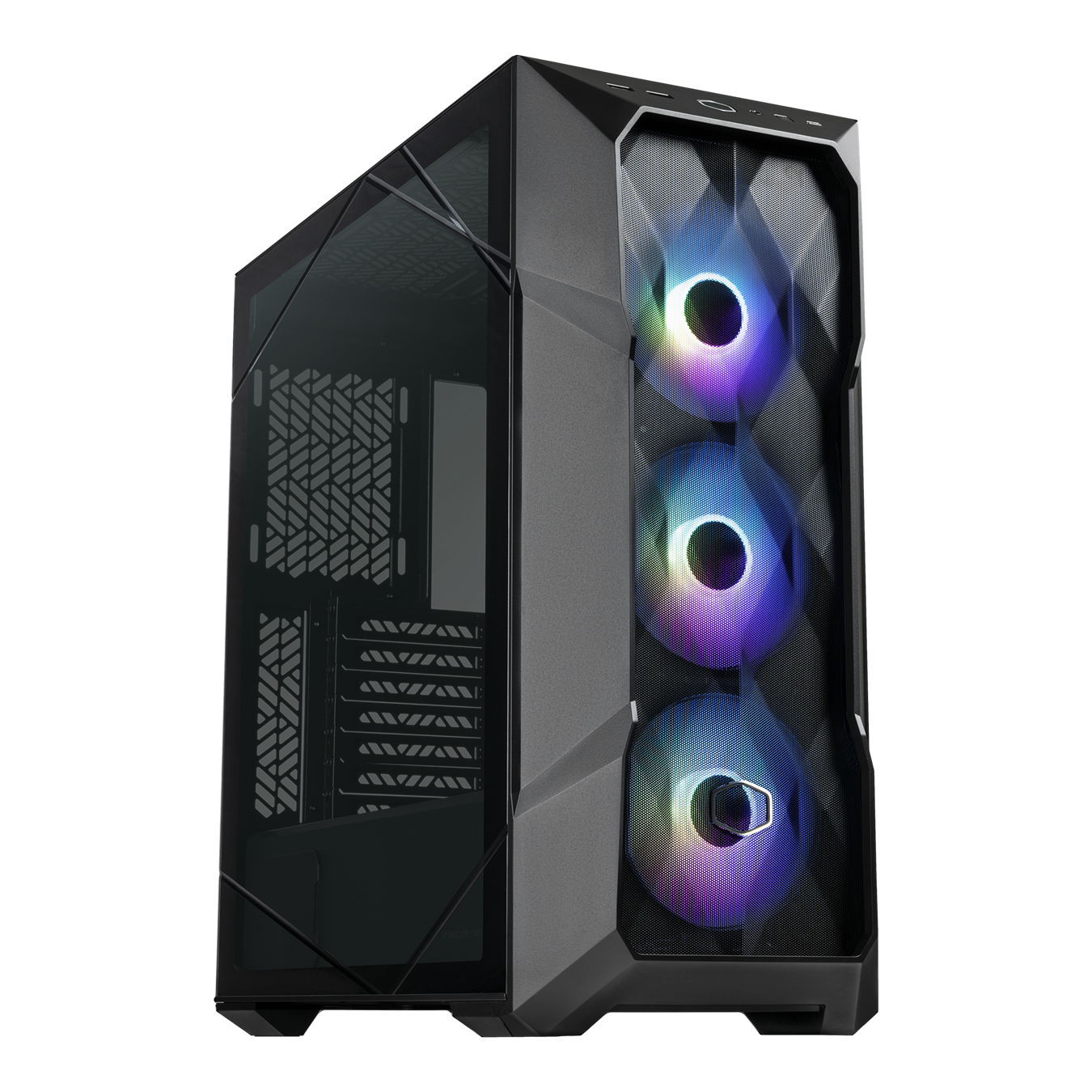

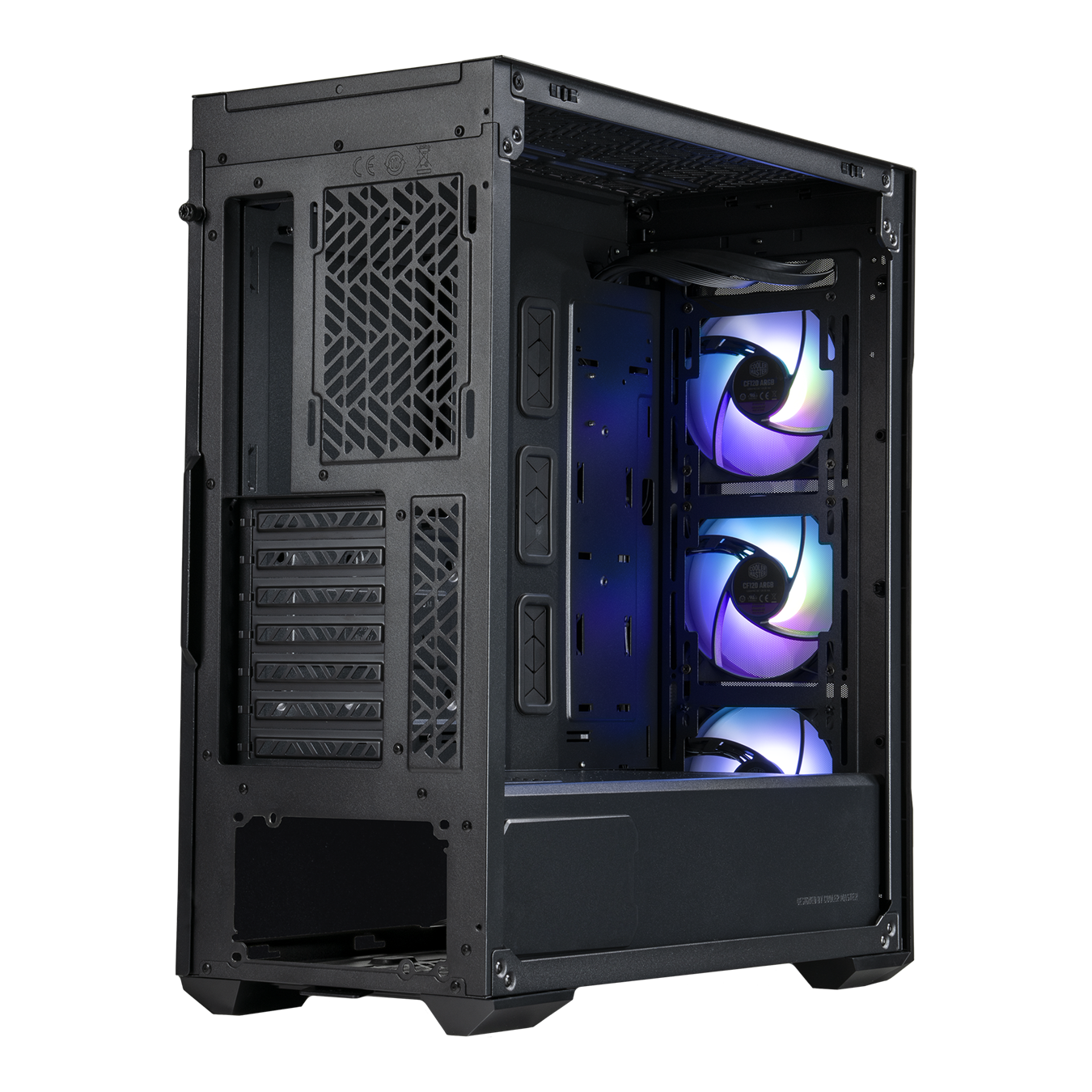

Cooler Master MasterBox TD500 Mesh V2 ARGB E-ATX Mid Tower Cabinet Black

Description

COLOR	Black, White
MATERIALS EXTERIOR	Steel, Mesh, Plastic
MATERIALS – LEFT SIDE PANEL	Tempered Glass
DIMENSIONS (L x W x H)	499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
MOTHERBOARD SUPPORT	Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (up to 12" x 10.7" motherboards, may impact cable management feature)
EXPANSION SLOTS	7
3.5 DRIVE BAYS	2
2.5 DRIVE BAYS	3
I/O PANEL – USB PORTS	2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
I/O PANEL – AUDIO IN/OUT	1x Audio Jack
I/O PANEL – OTHER	1x ARGB Fan Hub
PRE-INSTALLED FANS – FRONT	3x 120mm CF120 ARGB
PRE-INSTALLED FANS – REAR	N/A
FAN SUPPORT – TOP	3x 120mm, 2x 140mm
FAN SUPPORT – FRONT	3x 120mm, 2x 140mm
FAN SUPPORT – REAR	1x 120mm
RADIATOR SUPPORT – TOP	120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
RADIATOR SUPPORT – FRONT	120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT – REAR	120mm
CLEARANCE – CPU COOLER	165mm/6.49
CLEARANCE – PSU	200mm, (Recommended up to 170mm)
CLEARANCE – GFX	410mm / 16.14
CABLE ROUTING BEHIND MOTHERBOARD TRAY	19mm / 0.74
DUST FILTERS	Front, Top, Bottom
POWER SUPPLY SUPPORT	Bottom Mount, ATX
WARRANTY	2 years
SERIES	MasterBox Series
SIZE	Mid Tower
