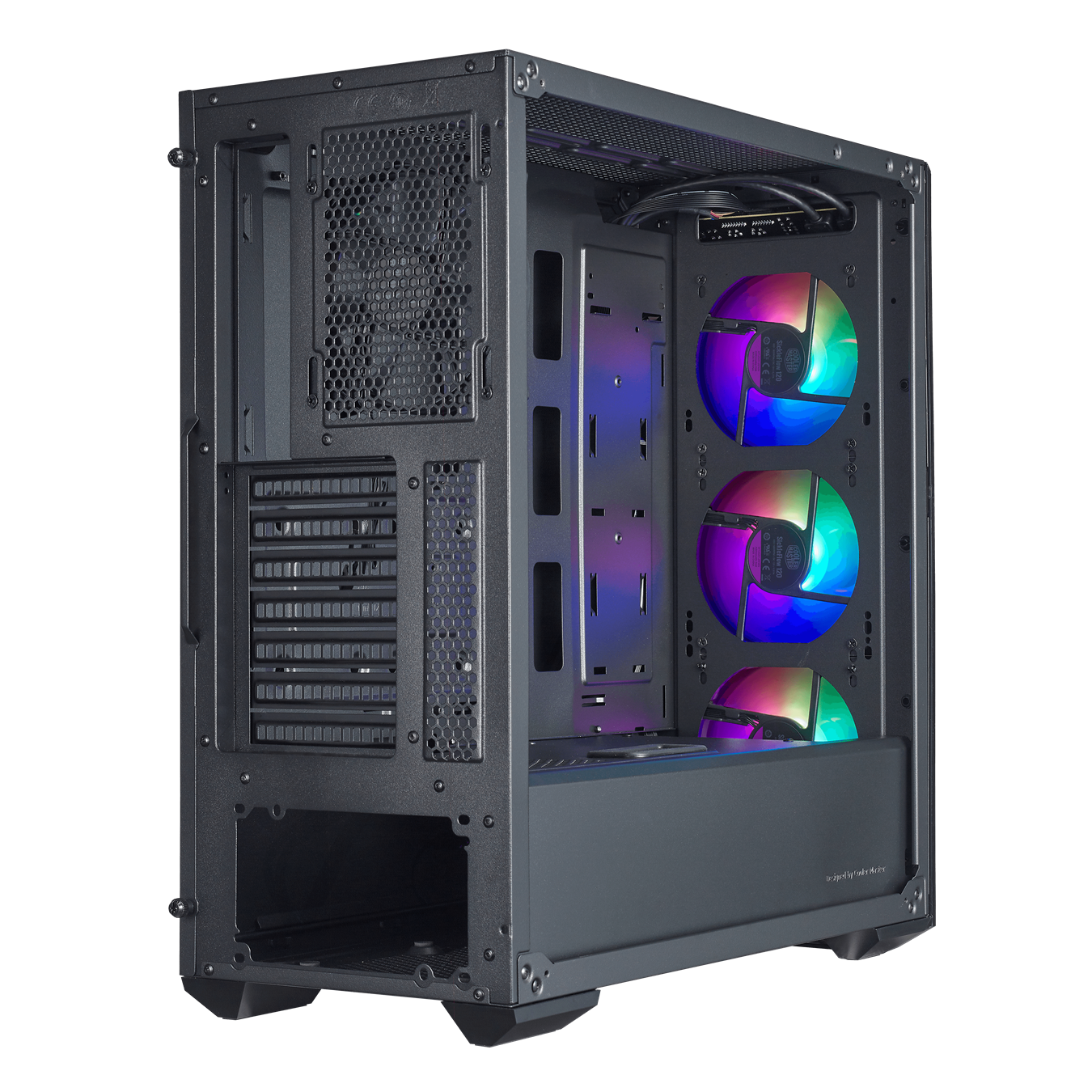

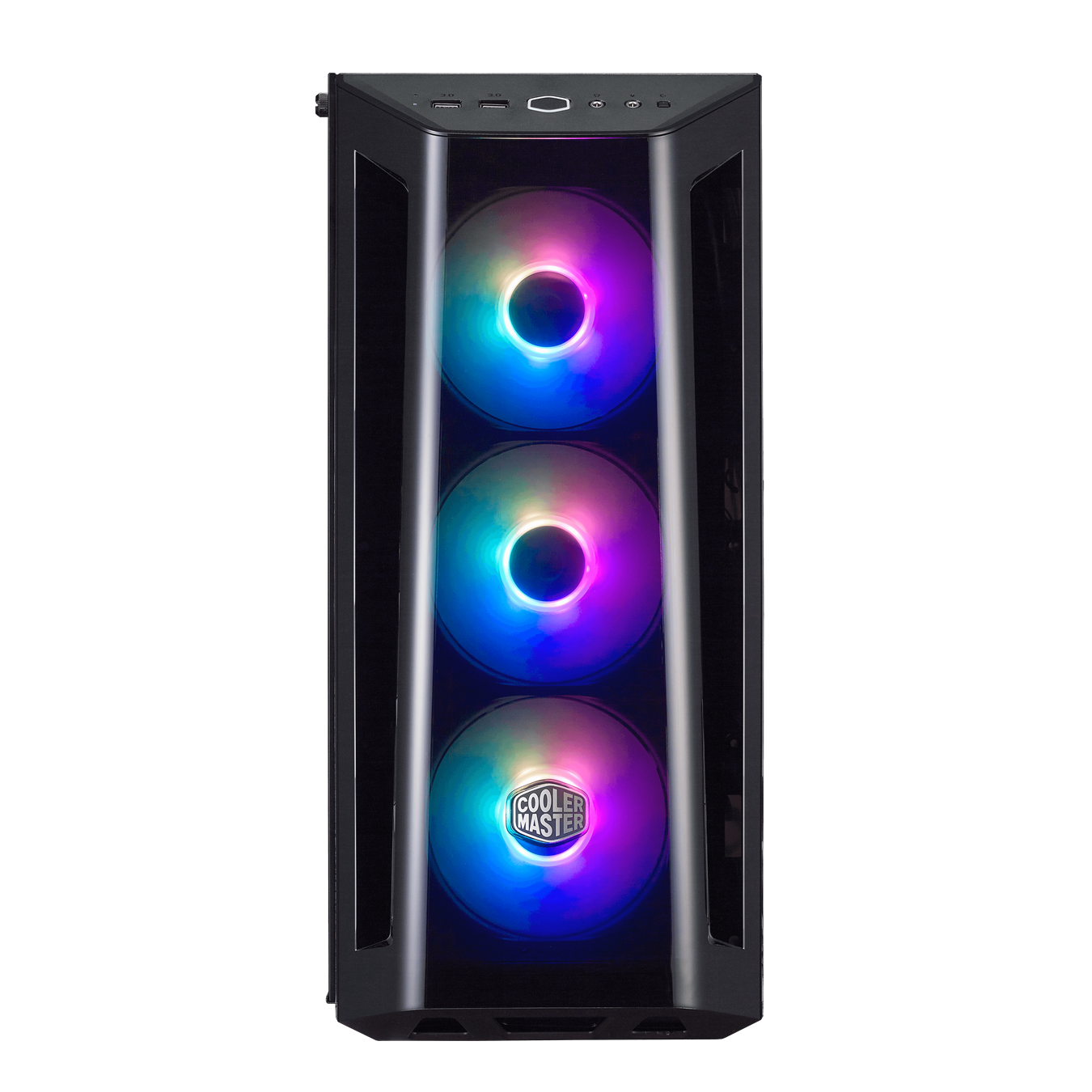

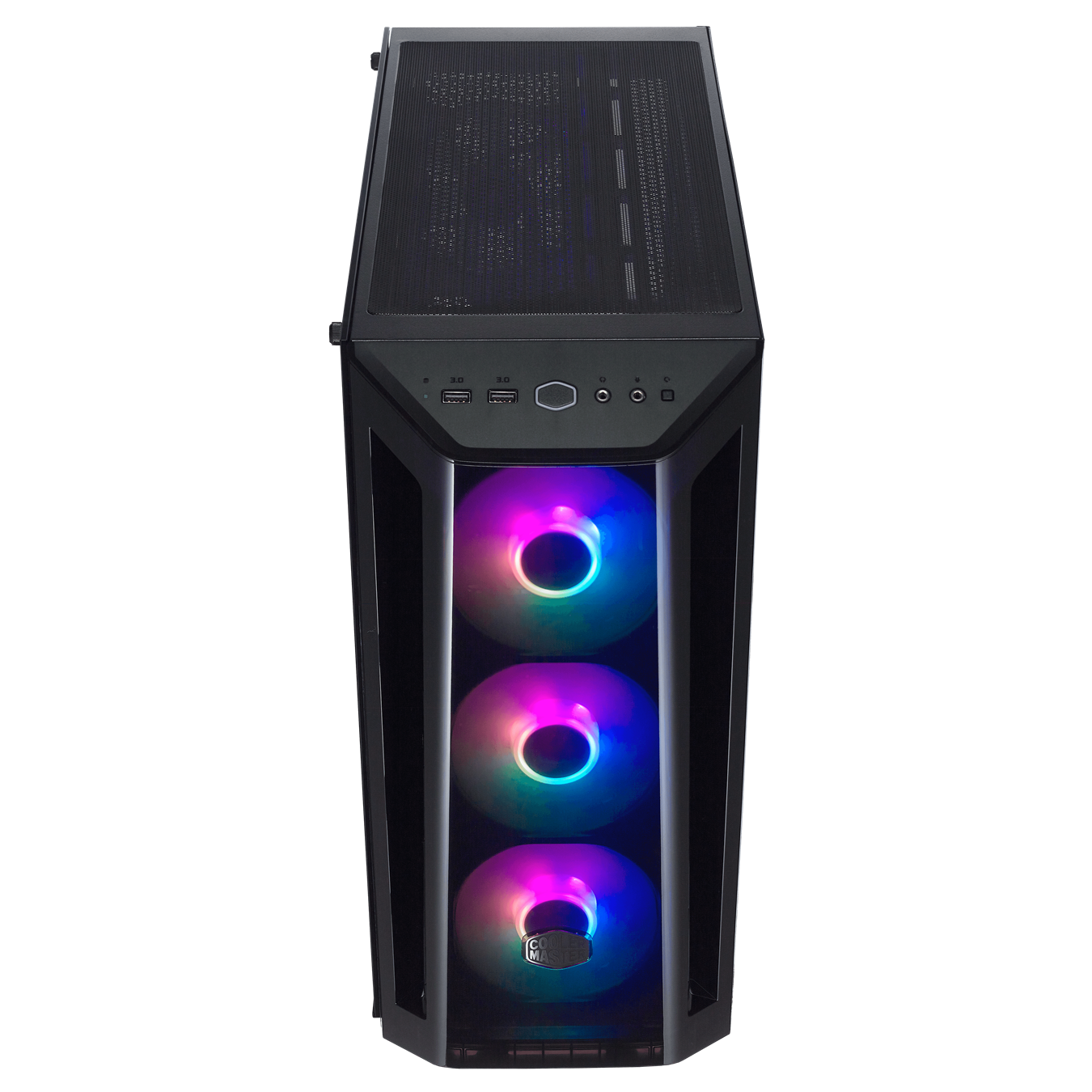

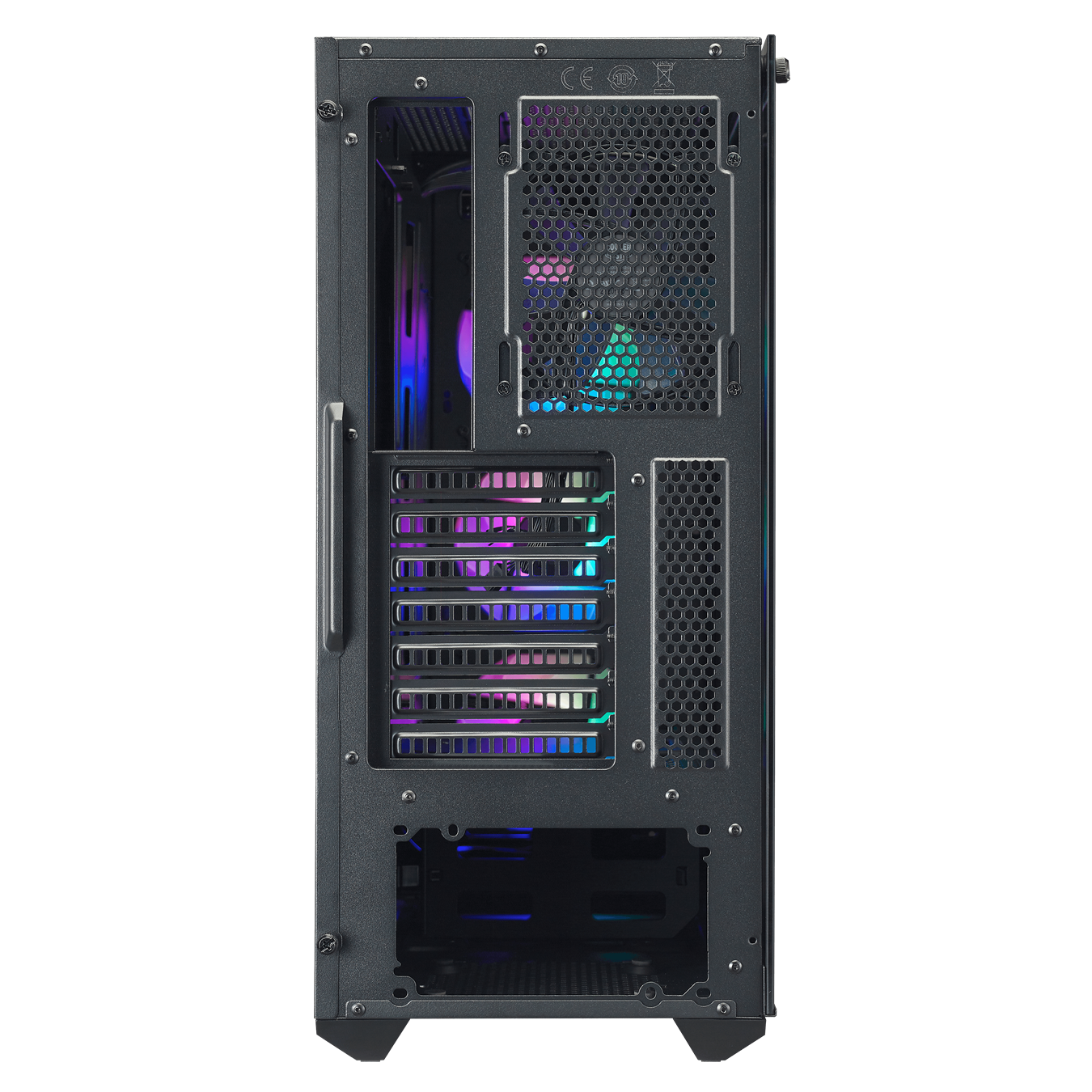

Cooler Master MasterBox MB520 Mesh ARGB ATX Mid Tower Cabinet Black

Description

SERIES	MasterBox Series
SIZE	Mid Tower
COLORS	Black
MATERIALS	Steel, Plastic, Tempered Glass
DIMENSIONS (L x W x H)	496 x 217 x 469 mm
WEIGHT	6.59 kg
MOTHERBOARD SUPPORT	Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX, (*up to 12" x 10.7" motherboards, may impact cable management feature)
EXPANSION SLOTS	7
5.25 DRIVE BAYS	N/A
2.5 / 3.5 DRIVE BAYS (COMBO)	2 (Max.2)
2.5 DRIVE BAYS	4 (Max.6)
I/O PANEL	2 x USB 3.2 Gen 1 (USB 3.0), 1 x 3.5mm Audio Jack,1 x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)
PRE-INSTALLED FANS – FRONT	3x 120mm 650~1800RPM SickleFlow PWM ARGB
PRE-INSTALLED FANS – REAR	1x 120mm 1000-1400RPM MasterFan Lite
FAN SUPPORT – TOP	3x 120mm, 2x 140mm
FAN SUPPORT – FRONT	3x 120mm, 2x 140mm
FAN SUPPORT – REAR	1x 120mm
RADIATOR SUPPORT – TOP	120mm, 240mm, 360mm, (44mm max motherboard component height)
RADIATOR SUPPORT – FRONT	120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
RADIATOR SUPPORT – REAR	120mm
CLEARANCE – CPU COOLER	165mm/6.49
CLEARANCE – PSU	180mm/7.08
CLEARANCE – GFX	410mm/16.1
CABLE ROUTING	19~27mm
DUST FILTERS	Top, Front, Bottom
POWER SUPPLY SUPPORT	Bottom Mount, ATX
WARRANTY	2 years
