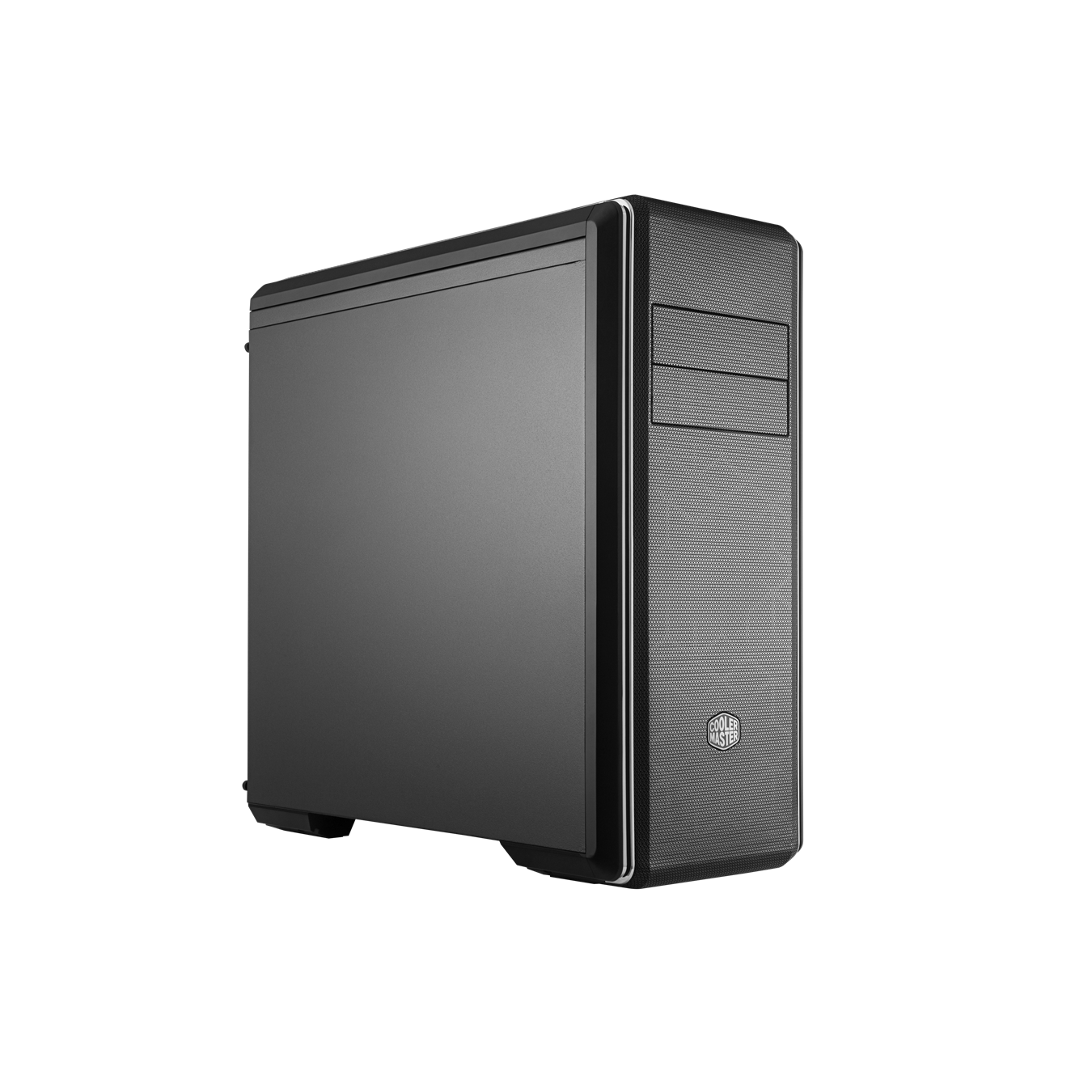

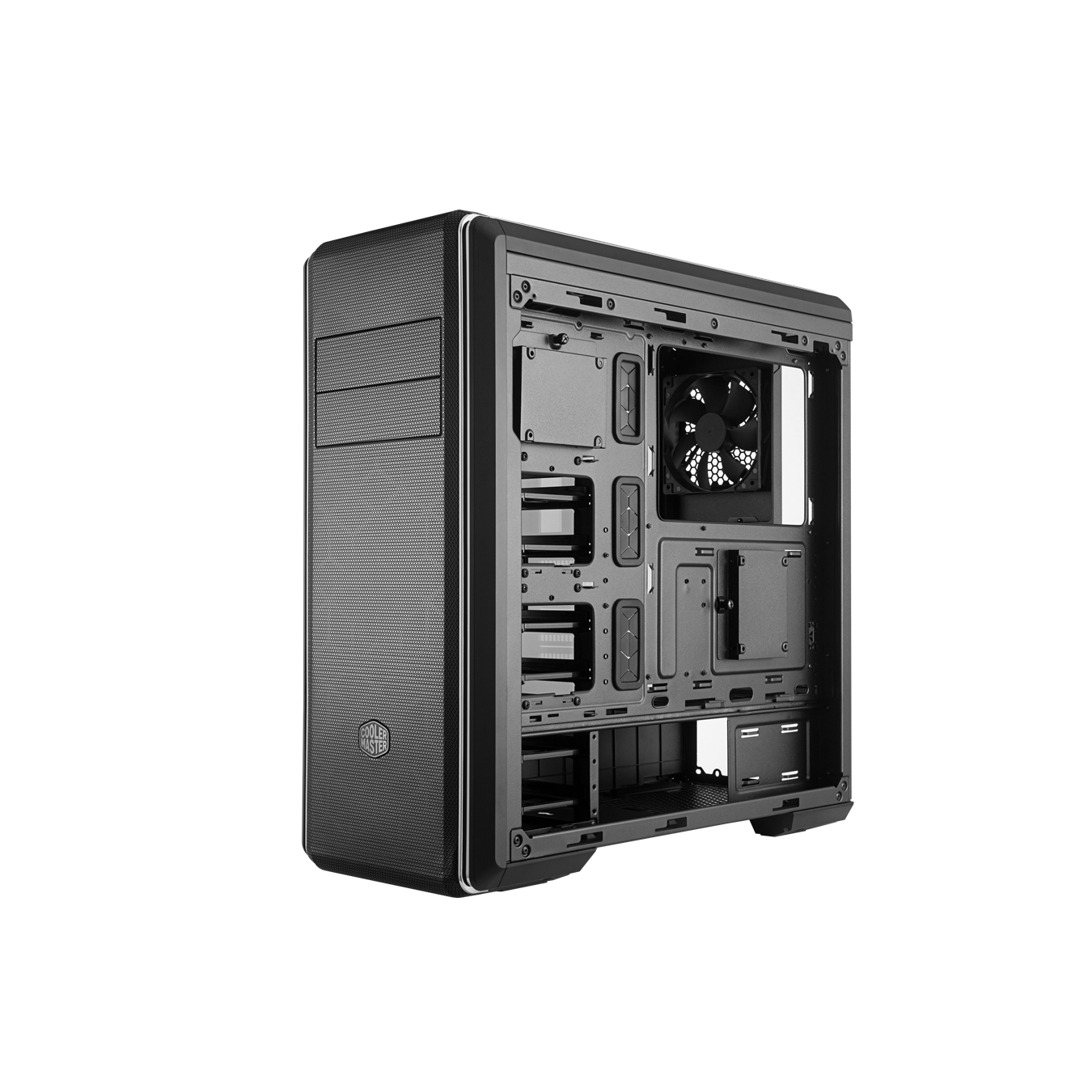

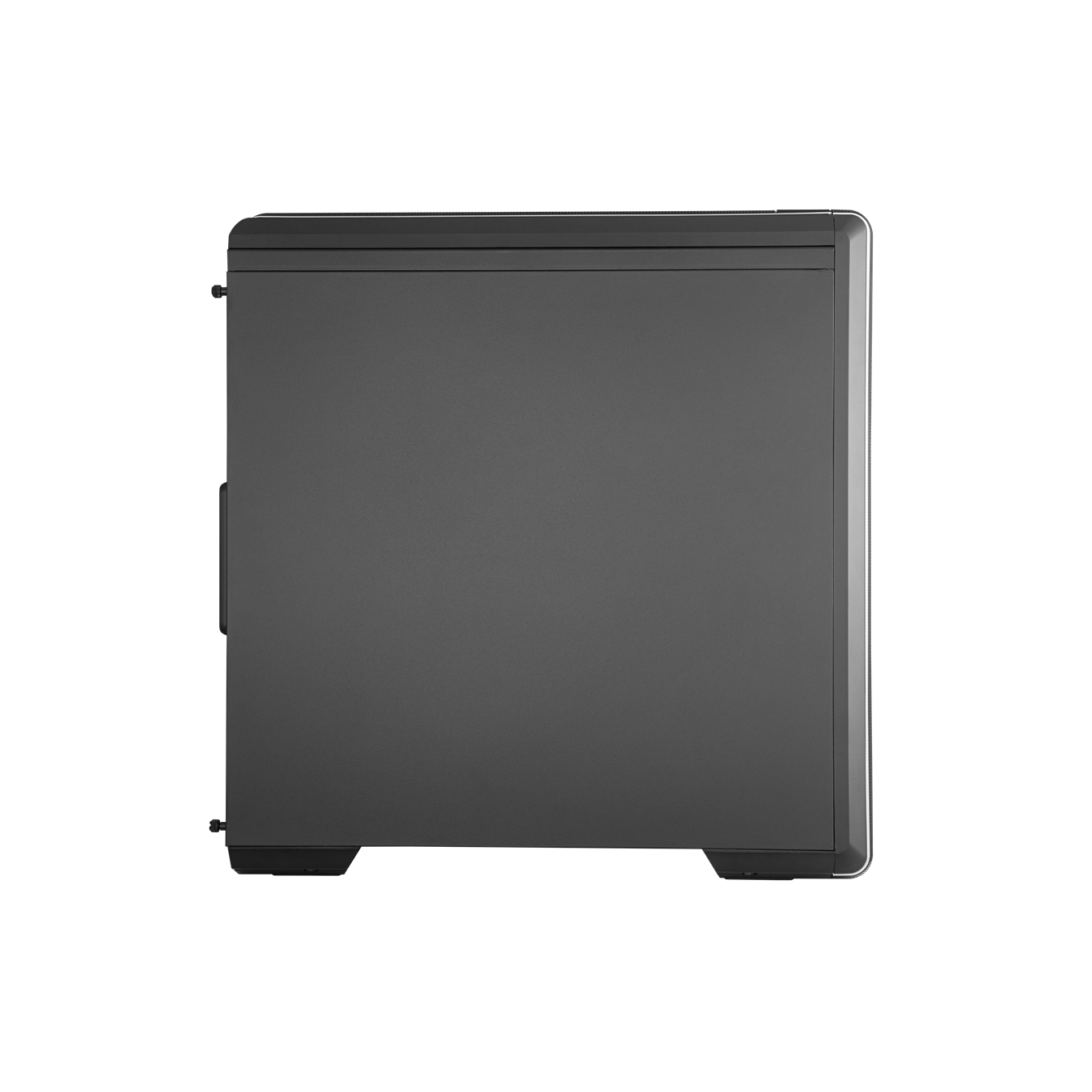

Cooler Master MasterBox CM694 Cabinet Black

Description

SERIES	MasterBox Series
SIZE	Mid Tower
COLORS	Black

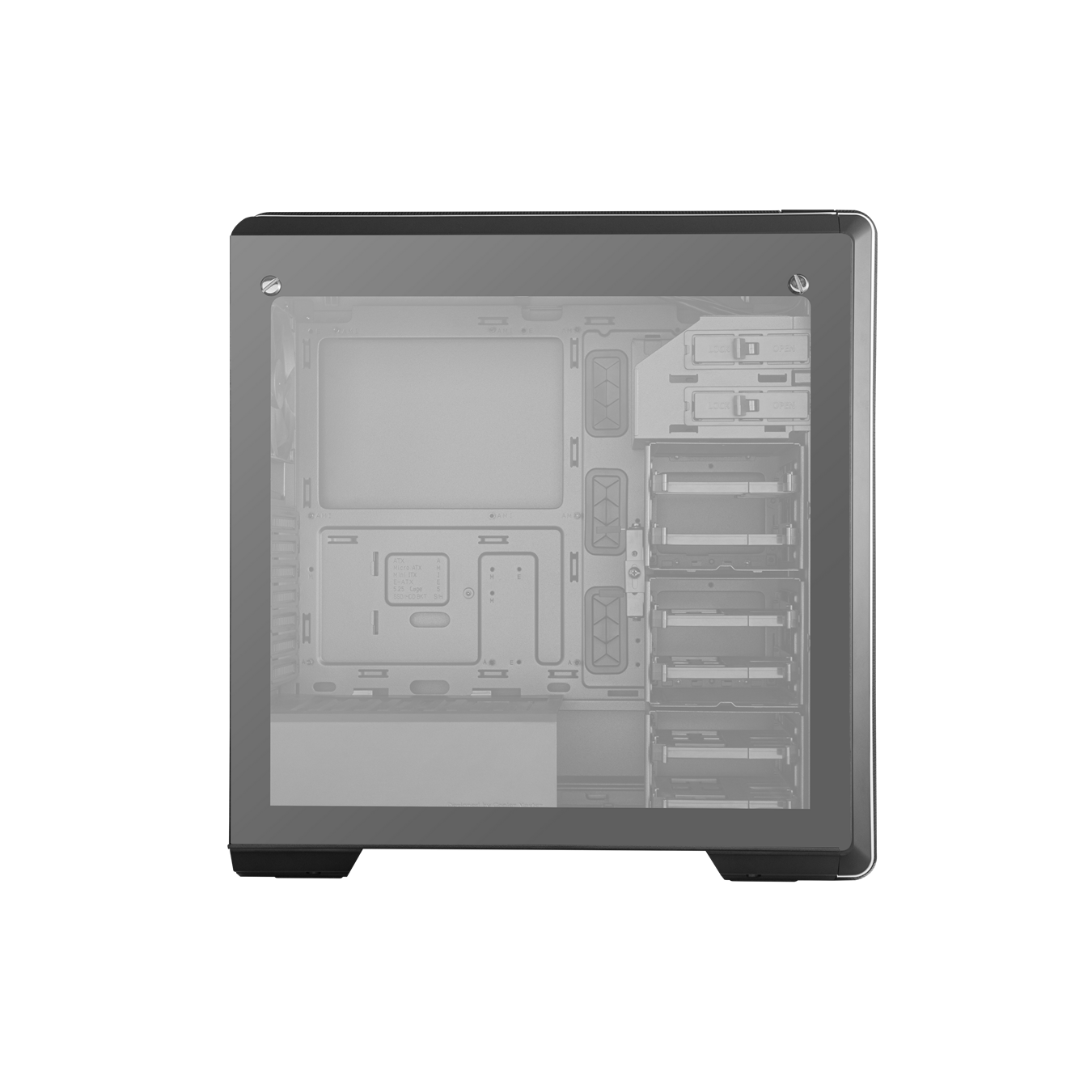

MATERIALS	Steel, Plastic, Tempered Glass, Mesh
DIMENSIONS (L x W x H)	Steel: 493mm x 220mm x 506mm (incl. Protrusions), Steel: 482mm x 220mm x 477mm (excl. Protrusions), TG: 493mm x 224mm x 506mm (incl. Protrusions), TG: 482mm x 224mm x 477mm (excl. Protrusions)

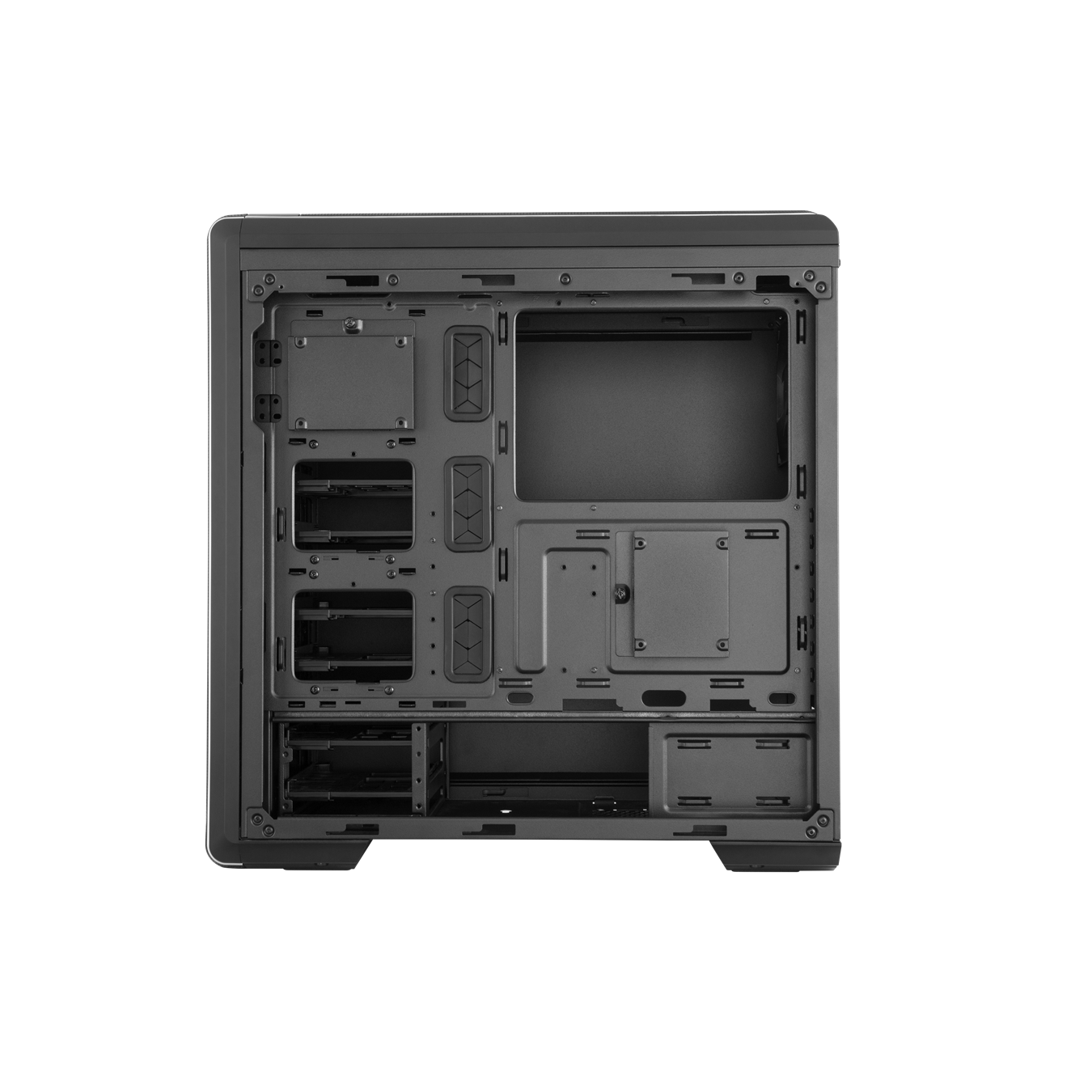

MOTHERBOARD SUPPORT	Mini ITX, Micro ATX, ATX, E-ATX

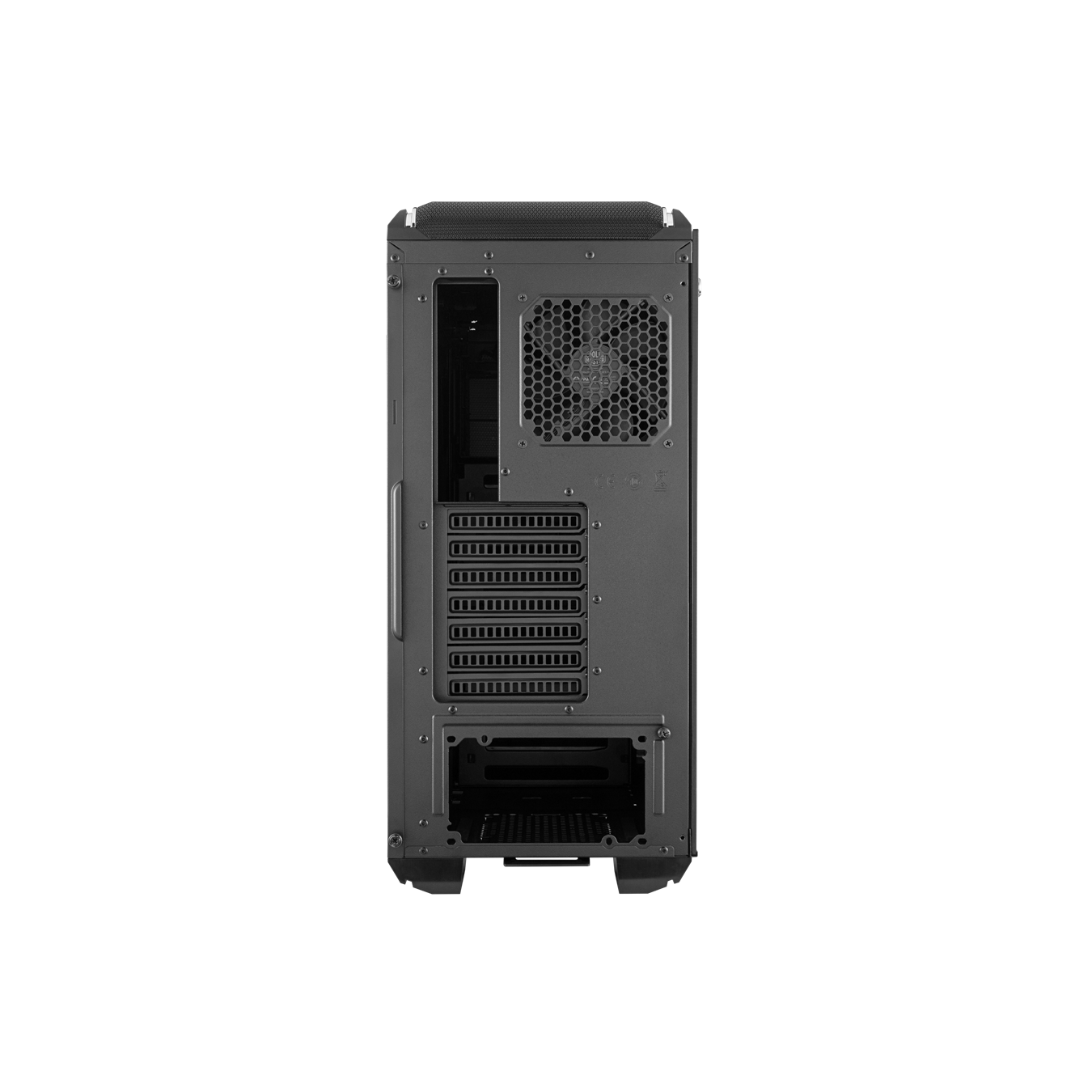

EXPANSION SLOTS	7
5.25 DRIVE BAYS	2

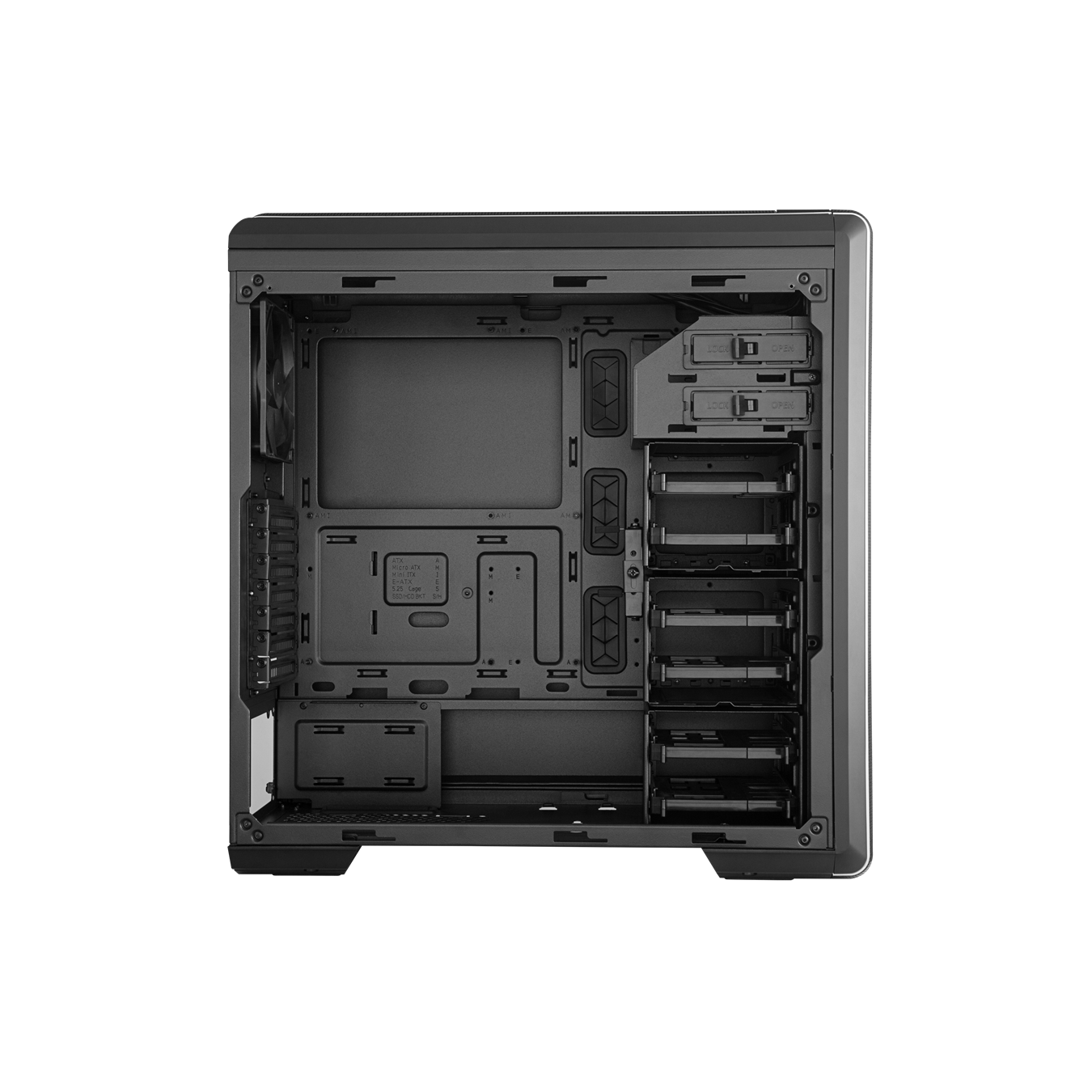

2.5 / 3.5 DRIVE BAYS	6 (3x drive cages)
2.5 DRIVE BAYS	8 (2 + 6 combo)

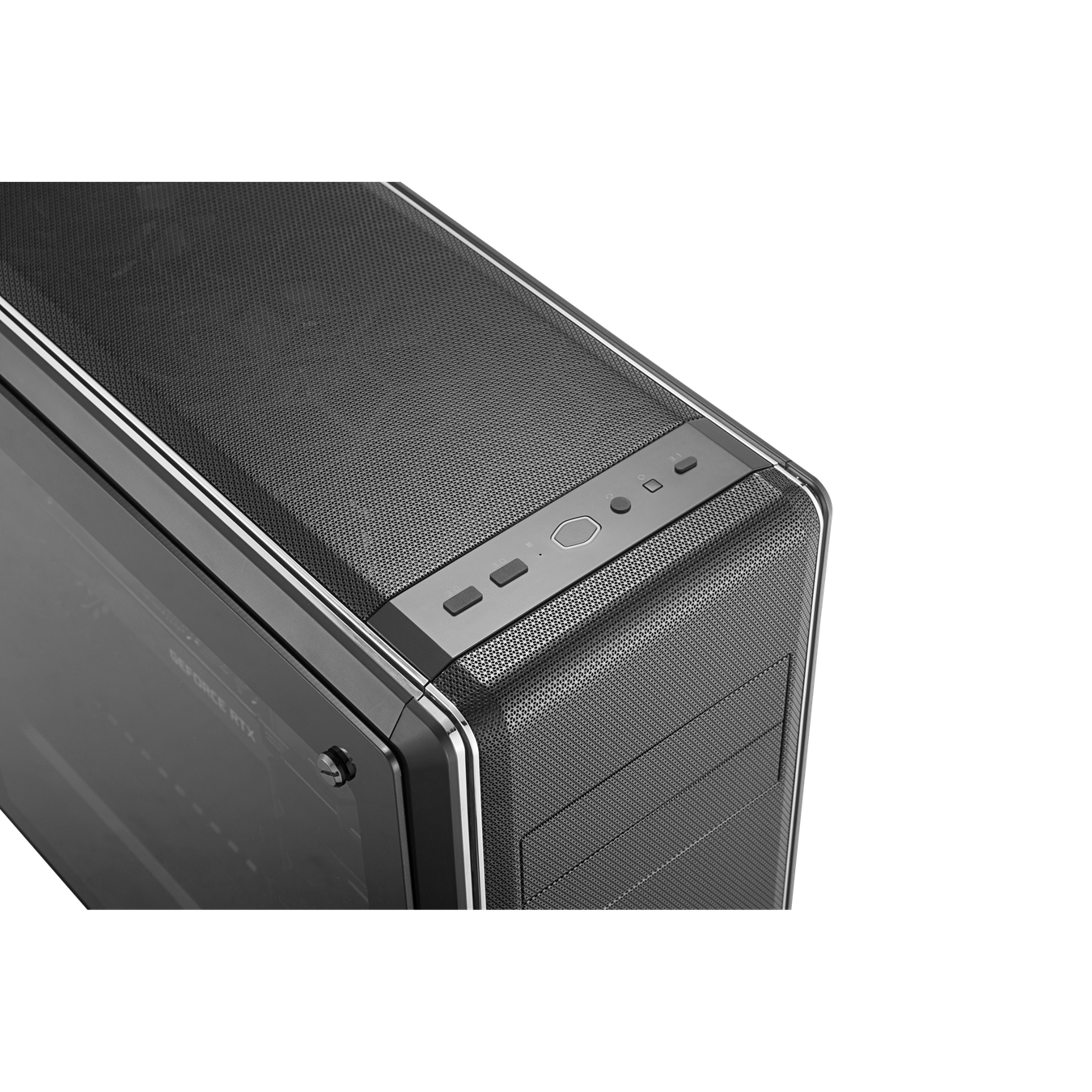

I/O PANEL	2x USB 3.0 Type A, 1x USB 3.1 Type-C, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS – FRONTS	2x 120mm Fan (1200 RPM ± 200 RPM, 3 pin connector)
PRE-INSTALLED FANS – REAR	1x 120mm fan (1200 RPM ± 200 RPM, 3 pin connector)
FAN SUPPORT – FRONT	3x 120mm / 2x 140mm (wo/ODD), 2x 120mm / 2x 140mm (w/ODD)
FAN SUPPORT – TOP	3x 120mm, 2x 140mm
FAN SUPPORT – REAR	1x 120mm
RADIATOR SUPPORT – FRONT	120mm, 140mm, 240mm, 280mm, 360mm* (remove 2 out of 3 drive cages) (*remove 2 out of 3 drive cages & ODD cage)
RADIATOR SUPPORT – TOP	120mm, 140mm, 240mm, 280mm, 360mm, (mount radiator below the bracket & fans above the bracket for maximum compatibility)
RADIATOR SUPPORT – REAR	120mm
CLERANCE – CPU COOLER	171mm

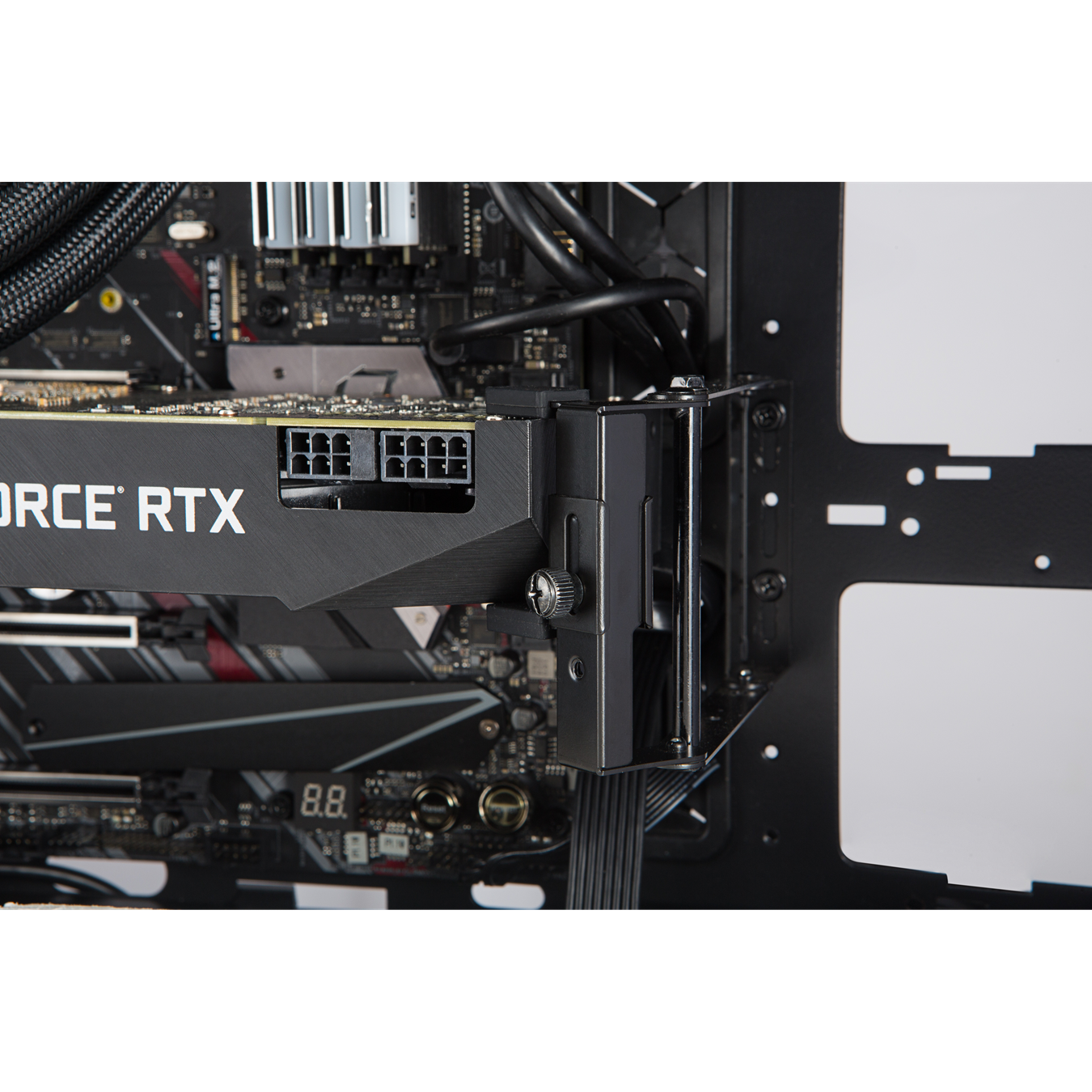

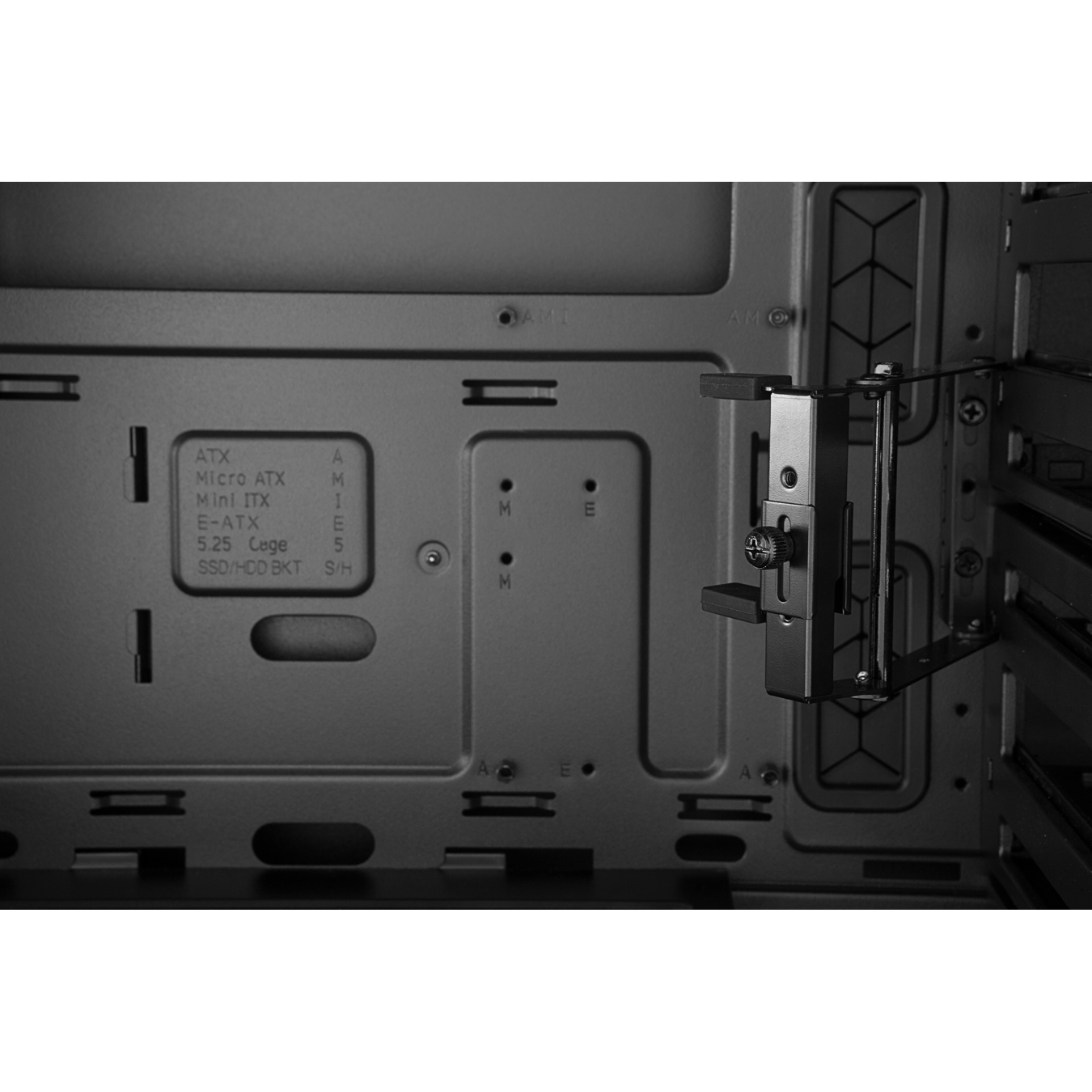

CLEARANCE – GFX	410mm/16.1", 350mm (with stabilizer), 280mm (with stabilizer + drive cage)
CLEARANCE – PSU	276mm, 160mm (drive cage rear position)
POWER SUPPLY SUPPORT	Bottom Mount, ATX PS2
DUST FILTERS	Top, Front, Bottom
CABLE ROUTING	27-29mm
